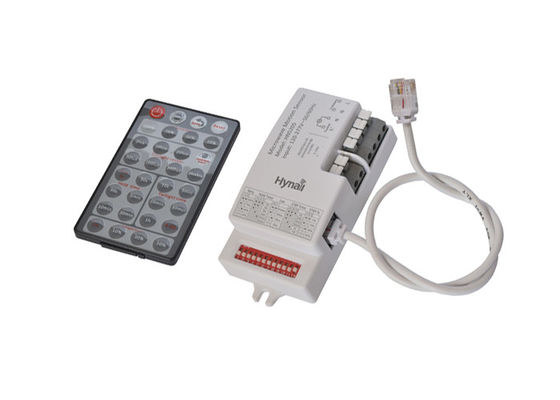

Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz

China Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz supplier

Large Image :  Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS205

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 20,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 120~277V AC 50/60Hz IP Rating: IP20
Usage: Ceiling Light, Linear Light, Outdoor Lighting, LED Panel Etc. Product Name: Microwave Motion Sensor Switch
Warranty: 5 Years Size: 102*45*26.5mm

Microwave motion sensor switch, AC Motion Sensor Switch , Detached Antenna head ,Tri - Level Dimming Control



Used together with ordinary 1~10v dimmable driver, achieve tri-level dimming control. When sensor is triggered, the lamp will be 100% on, after the Hold-time, the lamp will drop to pre-set dimming level, after a further long absence of people(Stand-by period), the lamp will completely switch off.



Quick Detail:



1. Dual daylight sensor

2. Tri-level dimming control

3. Daylight monitoring function

4. Detached antenna head

5. Remote commissioning

Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz

Features:

1.  Input voltage: 120〜277V AC, 50/60Hz
2. Rated load:

400W @ 120VAC (capacitive)

800W @ 200〜277VAC (capacitive)

3.  Stand-by power: <1w
4.  Detection range: Up to 12m in diameter
5. Mounting height: 3~6m
6. Operation temperature: -20℃~ + 70℃
7. IP rating: IP20

8. 5.8GHz C-band microwave motion sensor, tri-level dimming control.

9. Particularly designed for fixtures which with limited space, ideal for LED panels, linear office lights with metal louvres, compact bulkheads, etc. 10. Hide the sensor body and configure the small detached antenna head only.

11. Dual-processor technology, real Daylight monitoring function for built-in application.

12. Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

13. DIP switch + IR Remote control 2 channels setting. Automatically override each other upon the latest operation.

14. RJ11 connection between the sensor body and antenna head, easy plug and play.



   Size:


Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz

Detached sensor antennas:

Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz




Settings(by DIP switch):

Tri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60HzTri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60HzTri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60HzTri - Level Dimming Detached Antenna Head Microwave Motion Detector HNS205 50/60Hz
