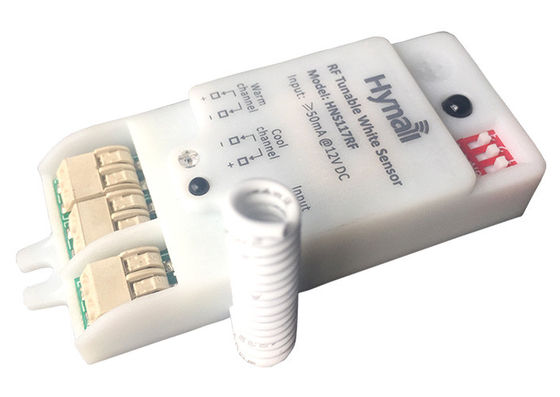

RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor

China RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor supplier
RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor supplier RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor supplier

Large Image :  RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS117RF

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 12/24V DC RF Frequency:: FSK 915MHz (868MHz EU Version Available)
RF Transmission Distance: Max. 50m In Open Area IP Rating: IP20
Usage: Ceiling Light, Linear Light, Outdoor Lighting And LED Panel Etc. Product Name: 12V Microwave Sensor
Warranty: 5 Years Size: 73.1*33*15.6mm

12V microwave sensor RF wireless motion sensor with tunable white & tri-level dimming control







Quick Detail:



1. Dual daylight sensor

2. Tri-level dimming control

3. RF wireless cluster control

4. Remote control

5. Tunable white

RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor



Size:

RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor





Features:



1.  Operating voltage: 12/24V DC
2. Input current: ≥50mA
3. Detection range up to 12m in diameter
4. RF transmission distance : max. 50m in open area
5. Mounting height: 3〜6m
6. Operation temperature: -20℃ ~ +70℃
7. IP rating: IP20

8. 5.8GHz C-band microwave motion sensor, tri-level dimming control.

9. Dual-processor technology, real Lux-Off function for built-in application.

10. IR remote commissioning, easy setting and user friendly.

11.Two channels output 0~10V / PWM signal, achieve color temperature adjustment and tri-level dimming.

12.RF wireless cluster control, ideal for retrofit project / parking garage / staircase / corridor applications,
     easy installation, free of wiring.



13. Fast and simple RF grouping by both the DIP switch and remote control.

14.RoHS compliant.

Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.



Settings:

RF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight SensorRF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight SensorRF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight SensorRF Wireless Cluster Control 12V Microwave Sensor IP20 Dual Daylight Sensor
