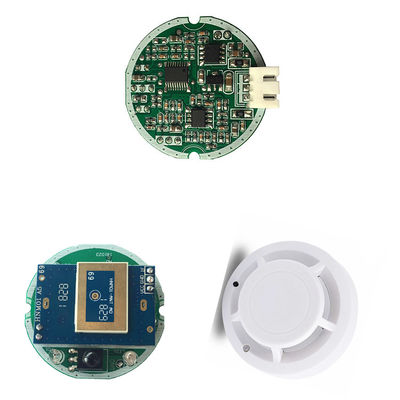

C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System

China C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System supplier
C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System supplier C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System supplier C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System supplier C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System supplier

Large Image :  C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS106HB

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 12V/ 24V DC Input Current: ≥25mA
Function: Dimming Function Detection Range: Up To 18m In Diameter
Mounting Height: 10~12m Size: 40mm In Diameter

 Enhanced Dection Range security sensor 12V DC Input, perfect for security system and intelligent system



Round apparance is better choice for your options. Smaller space



Size: 40mm in diameter, 38mm in diameter for installation



C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System



Features--



1. Input voltage: 12V / 24V DC
2. Input current: ≧25mA
3. Output signal: 0~10V dimming
4. Operation temperature:

-20℃ ~ +70

Super compact(∅40mm only), easily built into all kinds of highbay fixtures.

Dual-processor technology, real Lux -Off & Daylight monitoring function for built-in application.

IR remote commissioning, easy setting and user friendly.







Settings(by remote control IR12)--


Permanent ON/OFF function; Dim +/-; Sensor mode; Reset function

Ambient learn; Test mode

C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System





Permanent ON/OFF function: Press"on/off" button, the application goes to permanent off mode, sensor is disabled.
Dim: Press "Dim" button to automatically dim up or down.
Sensor mode: Press"auto" button, the sensor starts to work
Reset function: Press"reset" button, all settings go back to factory default settings.
Ambient function: Press"ambient" learn button, the atest surrounding lux value overwrites previous lux learned, and set as the daylighte threshold.
Test mode: "Test mode" is for testing purpose only, for users to check the functionality abd choose the desired detection range.







Detection pattern



Ceiling mounting: 12m in diameter for detection, detection range level: 25%, 50%, 75%, 100% for your options

Wall mounting: 16m in diameter for detection, detection range level same as ceiling mounting





Daylight monitoring function--



Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required (ambient light is bright enough).





C Band 5.8GHz Security Motion Sensor Tri Level Dimming For Intelligent System









 12V / 24V DC
