Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor

China Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor supplier
Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor supplier Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor supplier Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor supplier Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor supplier

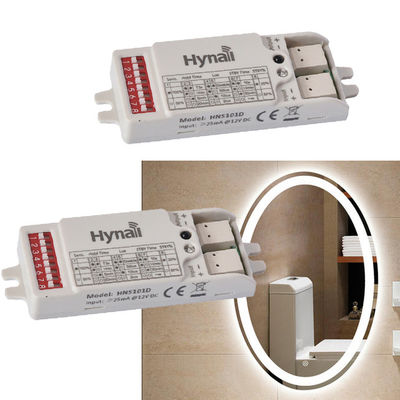

Large Image :  Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor

Product Details:

Place of Origin: Shenzhen
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS101D

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 40,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 12V/24V DC Input Current: ≥25mA
Detection Range: Max. 12m In Diameter Mounting Height: 3~6m
Type: Intelligent Mirror Frequency: 5.8GHz

Intelligent mirror sensor 12V DC Input , 1 ~ 10v dimming , Daylight Monitoring Function, perfect for intelligent system



12V DC input motion sensor with 1~10v dimming output and DIP switch setting



Features--

Real Daylight monitoring function for built-in application with dual-process technology

Max. 12m in diameter for detection range

Mounting height: 3~6m.

Operation temperature; -20℃ ~ + 70℃.

Input voltage; 12V/24V DC
Input current: ≥25mA
Output signal: 1~10V dimming



Settings--



Detection range:



100%,50% for your options





Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to      choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.



T3s, 1min, 5min,20min for your options





Daylight sensor

          Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable":        The sensor works always, even during daylight.

"50lux":            The sensor works only in twilight.

                  "10lux, 2lux":  The sensor works only in the dark.

Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor







Detection pattern--



Intelligent mirror sensor 1 ~ 10v dimming 5.8GHz microwave motion sensor
