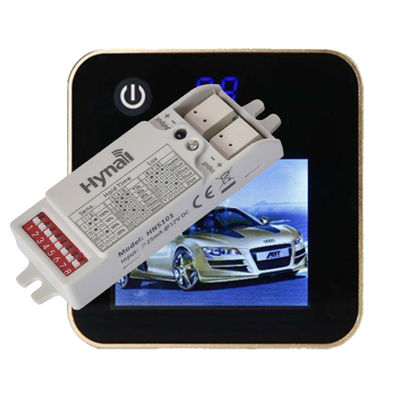

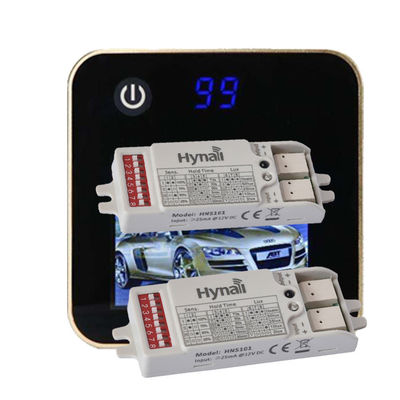

Advertising player sensor 12v sensor switch customized motion sensor

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS101
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12V DC(24V DC Is Available On Request Input Current ≥25mA
Control Type Ray Technology Size 75.1*26.6*13.8mm
Installation Built-in Operation Temperature -20℃ ~ +70℃
High Light

wireless motion sensor

,

home motion sensor

Leave a Message
Product Description

Advertising player sensor, upgraded the motion sensor with on / Off Control used by advertising player





This is the basic model for simple on/off control, compared to AC input version, this 12V DC version sensor has smaller size, give less shadow, at the same time, less expensive!





Features--

Input current: ≥25mA
Detection range: up to 12m in diameter
Mounting height: 3~6m
Operation temperature: -20℃ ~ +70℃


Input voltage 12V DC (24V DC version available on request).

Output signal: 5V DC high-low voltage.
Super compact

Real Lux-Off function for built-in application.
8 pin DIP switch setting.





Lux-Off function--

This sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).



This is the REAL& INTELLIGENT lux-off sensor for built-in installation.



Note: Lux-Off sampling time--30s
