Tri Level Dimming Dimmable Motion Sensor HNS116RF Setting By IR Remote Control

Good quality Microwave Motion Sensor Module for sales
Good quality Microwave Motion Sensor Module for sales
I'm Online Chat Now

Tri Level Dimming Dimmable Motion Sensor HNS116RF Setting By IR Remote Control

China Tri Level Dimming Dimmable Motion Sensor HNS116RF Setting By IR Remote Control supplier

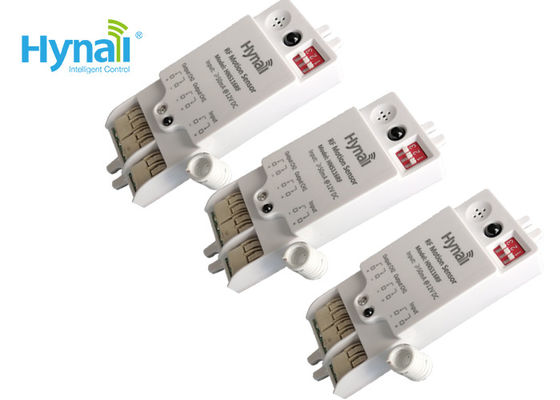

Large Image :  Tri Level Dimming Dimmable Motion Sensor HNS116RF Setting By IR Remote Control

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS116RF

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 12V DC RF Frequency:: 868MHz Or FSK 915MHz
RF Transmission Distance: Max. 50m In Open Area IP Rating: IP20
Function: RF Wireless And Tri-level Dimming Product Name: RF Wireless Microwave Motion Sensor

Dimmable motion sensor HNS116RF RF wireless microwave motion sensor



Function details:  RF wireless cluster cntrol, IR remote control, daylight monitoring and tri-level dimming



Features:



1.  Input voltage: 12V DC
2. Input current: ≥50mA
3. Detection range Up to 12m in diameter
4. RF transmission distance : Up to 50m in open area
5. Mounting height: Up to 6m
6. Operation temperature: -20℃ ~ +70℃
7. IP rating: IP20

8. Fast and simple RF grouping by both the DIP switch and remote control.

9.Output: tri-level dimming control, 0~10V / PWM signal.

Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.

Tri Level Dimming Dimmable Motion Sensor HNS116RF Setting By IR Remote Control
