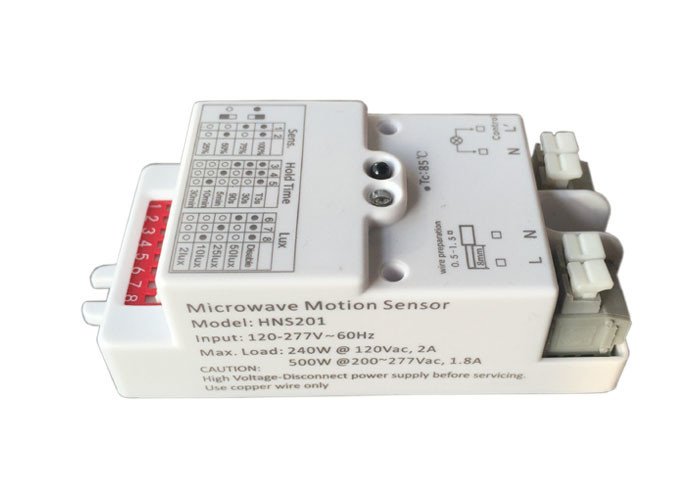

On Off Control ETL Motion Sensor 120 ~ 277V Input Lux Off IP20
Place of Origin | Shenzhen, China |
---|---|
Brand Name | Hynall |
Certification | RED, FCC, RoHS, ETL |
Model Number | HNS201(US) |
Minimum Order Quantity | 300pcs |
Price | To be negotiated |
Packaging Details | Bubble bag + carton. (color box or blister package also available on request) |
Delivery Time | 3~4 weeks for bulk orders |
Payment Terms | T/T |
Supply Ability | 30,000pcs / month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xInput Voltage | 120~277V AC 60Hz | Rated Load | 200W(capacitive) |
---|---|---|---|
Stand-by Power | <0.5W | Control Type | On / Off Control |
Detection Range | Max. 12m In Diameter | Mounting Height | 3~6m |
Certification | ETL | IP Rating | IP20 |
High Light | 277V Input ETL Motion Sensor,On Off Control ETL Motion Sensor,IP20 ETL Microwave Motion Detector |
On / Off Control , ETL Motion Sensor , 120 ~ 277V Input , Lux-Off Function
This sensor is a motion switch specially for American market, it turns on the light on detection of people movement, and turns off after a pre-selected hold-time when there is no people around. A daylight sensor is also applied built-in to disable the motion sensor or switch off the light when the natural light is sufficient.
Features--
5.8GHz C-band microwave motion sensor, on/off control.
Operating voltage: 120〜277V AC, 60Hz.
Rated load: 200W (capacitive)
Stand-by power: <0.5w.
Dual-processor technology, real Lux-Off function for built-in application.
Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.
Detection range up to 12m in diameter.
Mounting height: 3〜6m.
Operation temperature: -20℃ ~ +70℃ .
RoHS compliant.
IP rating: IP20.
Settings--
Detection range
Detection range can be reduced by selecting the combination on the DIP switches to fit precisely each application.
Hold-time
Hold-time means the time period to keep the lamp on 100% after motion detected.
*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.
Daylight sensor
Daylight sensor means the daylight threshold to enable or disable the sensor function.
"Disable”: The sensor works always, even during daylight.
"50lux, 25lux": The sensor works only in twilight.
"10lux, 2lux": The sensor works only in the dark.
Wiring diagram--
Detection pattern--
