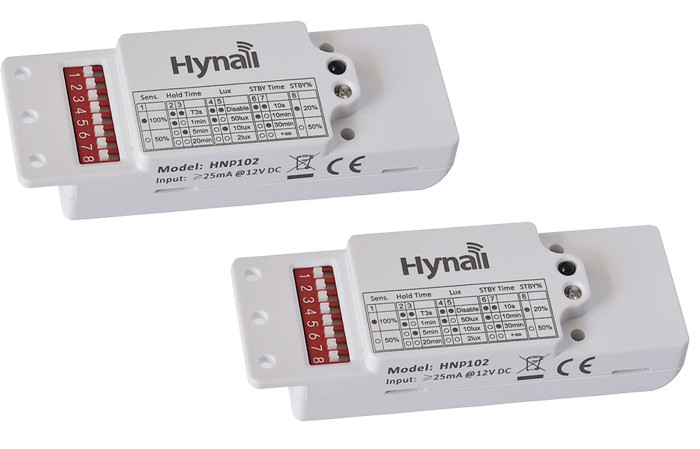

DC Input Tri Level Dimming IP20 Timer Daylight Switch Sensor

Place of Origin shenzhen
Brand Name hynall
Certification RED, FCC, RoHS
Model Number HNP102
Minimum Order Quantity 200pcs
Price To be negotiated
Packaging Details box
Delivery Time 4 weeks
Payment Terms T/T
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Function Timer & Tri-level Dimming Input Current ≥8mA
Output Signal 0~10V / PWM Setting 8 Pin DIP Switch Setting, Multiple Options To Meet Different Customer Demands
IP Rating IP20 Type DC Input, Daylight Sensor
High Light

8 pin dip motion sensor detector


ip20 microwave movement sensor

Leave a Message
Product Description

Microwave motion sensor switch timer function and tri-level dimming function daylight sensor



Quick Details:


Dual-processor technology, distinguish natural light and artificial light(lamp) from behind the diffuser, authentic daylight sensor for built-in application.

Super compact, flexible to be integrated into any suitable fixtures.

Built-in timer, for end user to specify desired period to keep the light 100% on before dim down.




Input voltage:  12 / 24V DC
Function: Tri-level dimming, not only for simple ON/OFF control, save more energy.
Operation temperature: -20℃~+70℃
IP rating: IP20
RoHS compliant





1. Daylight threshold

 This is the threshold for the daylight sensor to switch on & off.

“Lux on”value means the daylight sensor will switch on when detected natural light is less than it.


“Lux off”value means the daylight sensor will switch off when detected natural light is more than it.
Note: Lux-on sampling time--10s; Lux-off sampling time--30s.


Lux on: 5lux,10lux,25lux,50lux,100lux, disable for your options

Lux off: 25lux,40lux,60lux,90lux,200lux, disable for your options


2. Timer period

This is the period for the lamp to keep 100% on when natural light 5 is below set threshold.
2h,4h,6h,8h,12h, disable for your options


3. Dimming level

After the timer period, if the natural light is still insufficient, the lamp will drop to a pre-defined dimming

level. this dimmed level will sustain until the natural light becomes enough and the daylight sensor switch
off totally.


0%,10%,30%, 50%  for your options




Typical application


Setings for below scenario: At 7:00AM, when natural light becomes sufficient, the daylight sensor

automati-cally switch the fixture off.
