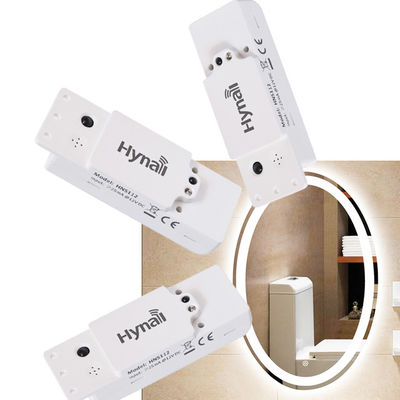

Intelligent mirror sensor with remote Controllable dimming function white color PC

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS112
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 50,000pcs / month
Detail Information
Input Voltage: 12V DC/ 24V DC Input Current: ≥25mA
Control Type: 5.8G Microwave Motion Sensor Color: White
Warranty: 5 Years Operation Temperature: -20℃ ~ +70℃
High Light:

microwave motion sensor

,

night light led sensor


Product Description

Intelligent mirror sensor  super compact, 1~ 10V Dimming Control , 12V Microwave Sensor



12V DC input motion sensor with 1~10v dimming output, special housing designed for Tri-proof fixture application. Infrared remote for end-user to change all the settings. Dual-processor technology to differentiate the natural light and lamp light, daylight monitoring function available.







Features--



Output signal: 1~10V dimming, customized version is available on request
Setting: easy setting with remote control
Mounting height: 3~6m



Flexible to be integrated into any suitable fixtures.
Dual-processor technology

Detection range up to 12m in diameter.

RoHS compliant.





Settings(by remote control IR12)--



Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.



Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.



Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.



Reset function



*Factory default settings--

Sensitivity=100%

Daylight sensor=disable

Hold time=90s

Twilight time=5min

Twilight level=10%



Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.



Test mode



*Test mode defaulted settings—

Daylight sensor=disable

Hold time=3s

Twilight time=N/A

Twilight level=N/A



In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).









Detection pattern--



Intelligent mirror sensor with remote Controllable dimming function white color PC 0



Daylight monitoring function--



Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on /off automatically(even without movements).
