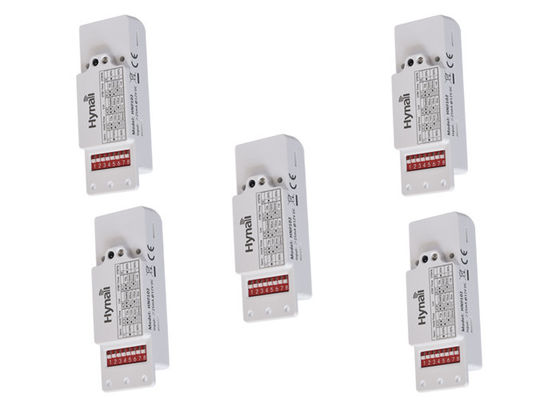

Tri Level Dimming HNP102 Daylight Sensor Switch 8mA

Basic Information
Place of Origin: shenzhen
Brand Name: hynall
Certification: RED, FCC, RoHS
Model Number: HNP102
Minimum Order Quantity: 200pcs
Price: To be negotiated
Packaging Details: box
Delivery Time: 4 weeks
Payment Terms: T/T
Supply Ability: 30000pcs per month
Detail Information
Input Voltage: 12V DC Input Current: ≥8mA
Output Signal: 0~10V / PWM Operation Temperature: -20 ℃ ~ + 70 ℃ .
IP Rate: IP20 Type: Daylight Sensor
Theory: Doppler
High Light:

HNP102 Daylight Sensor Switch


Daylight Sensor Switch 8mA


Tri Level Dimming Harvest Sensor Switch

Product Description

Microwave doppler sensor HNP102 daylight sensor with timer and tri-level dimming


Daylight sensor HNP102 with timer function and tri-level dimming control



1.  Flexible to be integrated into any suitable fixtures.
2. Dual-processor technology.
3.  Tri-level dimming and timer function integrated
4. Built-in timer
5. 8 pin DIP switch seting
6. RoHS compliant.





1. Daylight threshold

 This is the threshold for the daylight sensor to switch on & off.

Lux on   Lux off

5lux          25lux

10lux        40lux

25lux         60lux

50lux        90lux

100lux      200lux

Disable     Disable


2. Timer period

This is the period for the lamp to keep 100% on when natural light 5 is below set threshold.
2h,4h,6h,8h,12h, disable


3. Dimming level

After the timer period, if the natural light is still insufficient, the lamp will drop to a pre-defined dimming

level. this dimmed level will sustain until the natural light becomes enough and the daylight sensor switch
off totally.

0%, 10%, 30%, 50%




Typical applica



Setings for below scenario: At 7:00AM, when natural light becomes sufficient, the daylight sensor

automati-cally switch the fixture off.


Tri Level Dimming HNP102 Daylight Sensor Switch 8mA 0
