Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor

I'm Online Chat Now

Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor

China Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor supplier

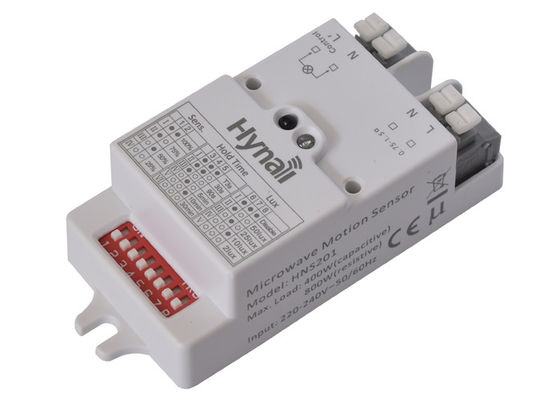

Large Image :  Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: CE, RED, FCC, RoHS
Model Number: HNS201(EU)

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 220~240V AC Rated Load: 400W(capacitive)
Stand-by Power: <0.5W Control Type: On / Off Control
Detection Range: Max. 12m In Diameter Mounting Height: 3~6m
Operation Temperature: -20℃ ~ +70℃ IP Rating: IP20

 On / Off Control , AC Motion Sensor Switch , With Lux-Off Function , Dual - PD Daylight Sensor



Simple ON/OFF control, using Dual-PD daylight sensor to differentiate the natural light and artificial light.

Real Lux-Off function when used built inside the fixture. When people comes, the sensor switches on the lamp, after chosen Hold-time, sensor switches off the lamp.



Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor



Features--



5.8GHz C-band microwave motion sensor, on/off control.

Operating voltage: 220〜240V AC, 50Hz.

Rated load: 400W (capacitive)

Stand-by power: <0.5w.

Dual-processor technology, real Lux-Off function for built-in application.

Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

Detection range up to 12m in diameter.

Mounting height: 3〜6m.

Operation temperature: -20℃ ~ +70℃ .

RoHS compliant.

IP rating: IP20.



Settings--



Detection range
Detection range can be reduced by selecting the combination on the DIP switches to fit precisely each application.

Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor



Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor



Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable”: The sensor works always, even during daylight.

"50lux, 25lux": The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.

Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor





Wiring diagram--



Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor





Detection pattern--



Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor





Lux-Off function--



Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).



This is the REAL& INTELLIGENT lux-off sensor for built-in installation.



Note: Lux-Off sampling time--30s

Hynall AC Motion Sensor Switch With Lux-Off Function , Dual - PD Daylight Sensor
