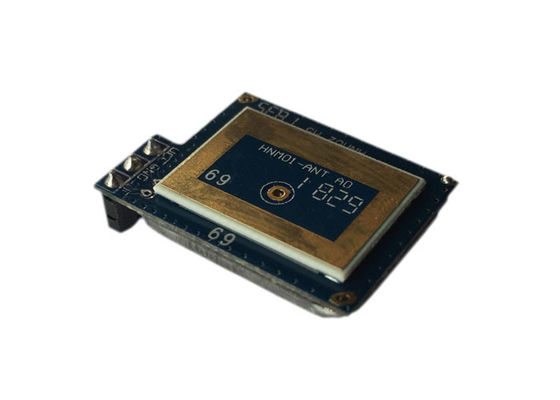

Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor Development

I'm Online Chat Now

Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor Development

China Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor Development supplier

Large Image :  Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor Development

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNM02

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: To be negotiated
Packaging Details: Blister packaging
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Contact Now
Detailed Product Description
Antenna Type: Patch Antenna EIRP Output Power: 6dBm
Modes Available: CW Mode & Pulse Mode Input Voltage: 5 ± 0.25V DC
Average Current: 1.2mA Typ. HF Frequency: 5.8GHz

Smallest Patch Antenna , Microwave Motion Sensor Switch , Component For Sensor Development



This is the smallest patch antenna in microwave motion sensor industry!! Ultra-low current consumption(12mA only), supports more application possibilities(like security use, etc.).



Sometimes, the standard / finished sensor products don't fit for customers' specific demand, they want to design and produce their own sensor controls to fit better and bring more added values to their fixtures, at the same time save cost deeply. This antenna module is just for you to do that as the crucial component. For customers who have enough R&D competence to integrate such antenna module, this is definitely the most cost efficient and flexible solution to develop their own sensor product ranges.



Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor DevelopmentFeatures--



Super mini size.

5.8GHz C-band miniature transceiver.

Patch antenna, antenna gain: 3 dBi.

Beam aperture: 30°.

2 balanced mixer.

6dBm EIRP output power.

Receiver bandwidth: 1Hz ~ 2KHz.

Operating current(CW mode): 12mA@5V.

Low power consumption(Pulse mode):

Average current: 1.2mA typ.

Pulse width(min.):10~50µ s(10kHz~2kHz)

Duty cycle:10% DC

RoHS compliant

Tested to EN300 440



PIN Description--

Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor Development



Coverage Pattern--

Smallest Patch Antenna Microwave Motion Sensor Module Component For Sensor Development
