Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input DIM Solution

China Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution supplier

Large Image :  Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input DIM Solution

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS105

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 50,000pcs / month
Contact Now

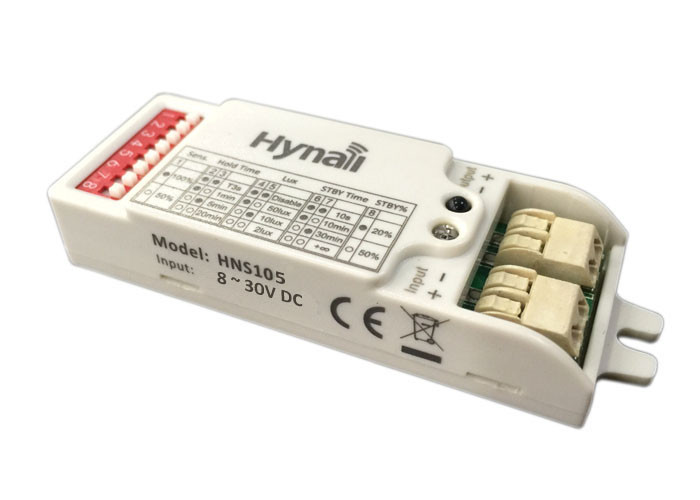

Detailed Product Description
Input Voltage: 8~30V DC Rated Output: 1.5A Max. (e.g. Max.18w@12v; Max.36w@24v)
HF Frequency: 5.8GHz Mounting Height: 3~6m
Specially For: Solar System Product Guarantee: 5 Years
Control Type: Tri-level Dimming Control Operation Temperature: -20℃ ~ +70℃

                           Sensor - DIM Solution For Solar System , Microwave Motion Sensor Switch , 8 ~ 30V DC input



This sensor is specially designed for:

         1 -  solar system application.
         2 -  low voltage halogen lamp application.

         3 -  standard fixture with non-dimmable constant voltage driver.



Sensor-Dim function is easily achieved by just adding a single pcs HNS105!!!





Features--



5.8GHz C-band microwave, tri-level dimming function.

Input voltage 8~30V DC.

Rated output: 1.5A max. (e.g.  max.18w@12v; max.36w@24v)

Tri-level dimming control.

          Super compact, flexible to be integrated into any suitable fixtures.

Dual-processor technology, real Daylight monitoring function for built-in application.

8 pin DIP switch setting, multiple options to meet different customer demands.

Detection range up to 12m in diameter.

Mounting height: 3~6m.

Operation temperature; -20℃ ~ + 70℃.

RoHS compliant.





Settings--



Detection range

Detection range can be reduced by selecting the combination

on the DIP switches to fit precisely each application.

Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution



Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution



Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable": The sensor works always, even during daylight.

"50lux": The sensor works only in twilight.

   "10lux, 2lux": The sensor works only in the dark.

Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution



Stand-by period

This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.

     “+∞”: means bi-level dimming control, the fixture never switch off.

Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution



Stand-by dimming level

This is the dimmed low light level you would like to have after the hold-time in the absence of people.

Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution





Wiring diagram--



Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution





Detection pattern--



Solar System Microwave Motion Sensor Switch 8 ~ 30V DC input  DIM Solution
