PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board
  • name

PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board

MOQ: 400pcs
Price: Negotiable
Standard Packaging: Blister packaging
Delivery Period: 4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 30,000pcs / month
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNS103D
Input Voltage:
5V DC(12V / 24V DC Version Available On Request)
Input Current:
≥20mA
Control Type:
PWM Dimming
Detection Range:
Max. 12m In Diameter
Mounting Height:
3~6m
Product Type:
Naked Board
Product Guarantee:
5 Years
HF Frequency:
5.8GHz
Settings:
By VR
Packaging:
Blister Packaging
Highlight:

motion sensor dimmer switch

,

dimmer sensor switch

,

PWM Dimming Motion Dimmer Switch

Product Description

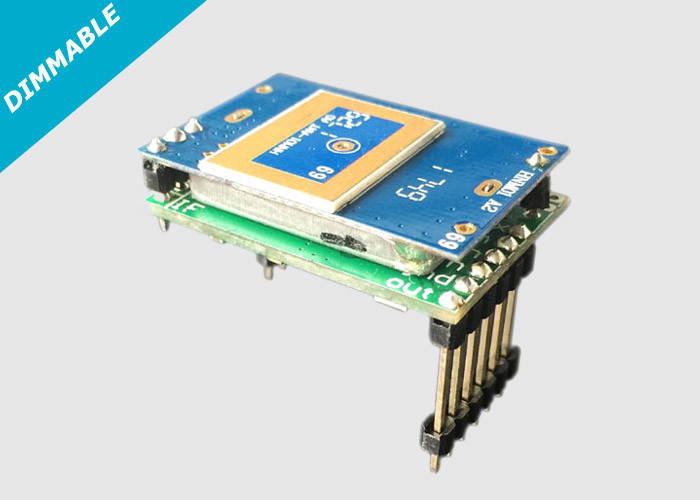

                        PWM Dimming Control , Dimmable Motion Sensor , 5V DC Input , VR Adjustable , Naked Board



This is only a naked board sensor, with built-in MCU and VR setting adjustable, no mote extra software development needed, easy & fast for customers to integrate into their own PCB / system.



Features--



5.8GHz C-band microwave.

With built-in MCU, no more extra software development needed, easy & fast productization.

Input voltage 5V DC (12V / 24V DC version available on request).

Input current:≥20mA.

Output 5V PWM signal.

Setting done by 3pcs individual VR, clockwise to 5V(max.), counter clock-wise to 0V(min.).

PIN connection, easy assembly.

Detection range up to max.12m in diameter.

Mounting height: 3~6m.





Settings--



PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board 0





PIN description--



PIN Name Description
1 Output PWM
2 GND /
3 VCC 5V DC(12V DC version available on request)
4 Sens. VR VR for detection range selection
5 Time VR VR for hold time selection
6 Lux / Dim level VR VR for standby dimming level selection(HNS103D)
7 NC Fix PIN
8 NC Fix PIN

PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board 1

Detection range--



PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board 2



Peripheral port extension--



PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board 3







Typical peripheral circuit application--



PWM Dimming Control Motion Dimmer Switch 5V DC Input VR Adjustable , Naked Board 4
