Daylight Harvesting sensor 12v Dimming small human body sensor

Place of Origin China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS111DH
Minimum Order Quantity 200pcs
Price To be discussed
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12V DC (5V & 24V Version Available On Request) Input Current ≥25mA
Control Type 1~10v Dimming(tri-level Dimming Control) Detection Range Max. 12m In Diameter
Mounting Height 3~6m Operation Temperature -20℃ ~ +70℃
Daylight Harvesting Function Yes HF Frequency 5.8GHz
Product Guarantee 5 Years Settings By Remote Control IR12
High Light

doppler motion sensor

,

doppler microwave motion sensor

Leave a Message
Product Description

                       Daylight Harvesting Function , 1 ~ 10v Dimming , Remote Controllable



Thanks to the Dual-processor technology, this sensor successfully combines motion detection and daylight harvesting function. The lamp will automatically adjust its output level according to the change of natural brightness when it's motion detected. This feature makes it ideal for office / commercial lighting.

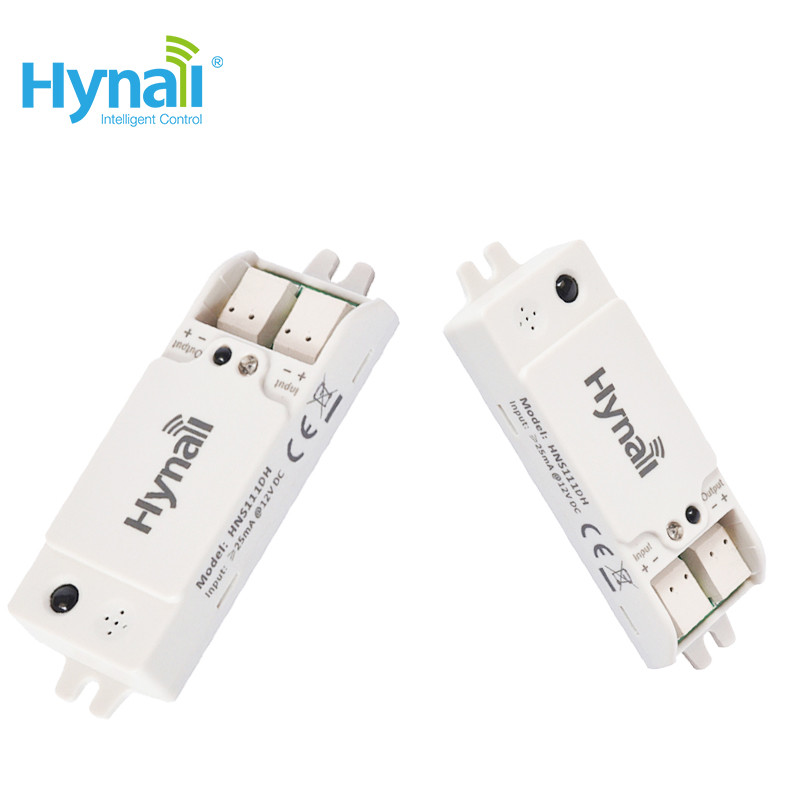

Daylight Harvesting sensor 12v Dimming small human body sensor 0

Features--

Input voltage 12V DC (5V & 24V DC version available on request).
Input current:≧25mA.
1~10V dimming signal.
Dual-processor technology, real Daylight monitoring function for built-in application.

Operation temperature: -20℃ ~ +70 ℃





Settings(by remote control IR11)--



Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.



Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.

*after desired brightness is locked down, if user wants to dim again reversely, just press the Dim button again and then lock down the new brightness again.



Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.



Reset function

PressReset button, all settings go back to factory default settings.



Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.



Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.



Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.



In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).



Daylight Harvesting sensor 12v Dimming small human body sensor 1



Easy operation for daylight harvest--



Daylight Harvesting sensor 12v Dimming small human body sensor 2





Detection pattern--



Daylight Harvesting sensor 12v Dimming small human body sensor 3
