1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation

China 1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation supplier
1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation supplier 1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation supplier 1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation supplier

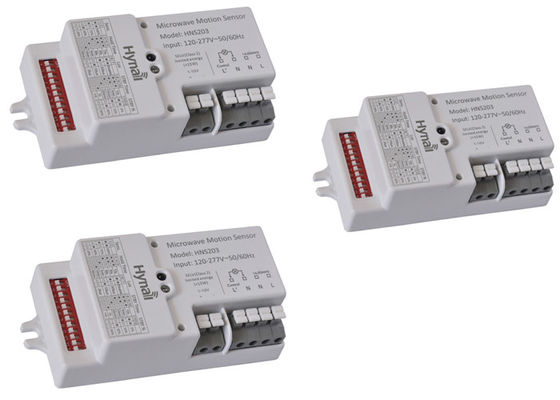

Large Image :  1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS203

Payment & Shipping Terms:

Minimum Order Quantity: 400pcs
Price: Negotiable
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 50,000pcs / month
Contact Now
Detailed Product Description
Function: Tri-level Dimming, Daylight Monitoring Stand-by Power: <1w
Output Signal: 1-10V Dimming Signal Size: 102*45*27.5mm
Setting: DIP Switch IP Rating: IP20

AC input , Dimmable microwace motion sensor , with daylight monitoring



Quick Details



Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

Dual-processor technology, real daylight monitoring function for built-in application.





Features:

Input voltage: 120〜277V AC, 50/60Hz.
Rated load:

 400W@120VAC  (capacitive)

 800W @ 200〜277VAC  (capacitive)

Detection range: up to 12m in diameter
Mounting height: 3~6m
Operation temperature: -20℃~ +70℃
RoHS compliant





Settings:



Detection range: 100%, 75%, 50%, 25% for your options









Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

T3s, 30s,90s,5min,10min,30min for your options



Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable":     The sensor works always, even during daylight.

"50lux":         The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.





Stand-by period

This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.

“+∞”: means bi-level dimming control, the fixture never switch off.



10s,5min,10min,30min,1H, +∞ for your options





Stand-by dimming level

This is the dimmed low light level you would like to have after the hold-time in the absence of people.

*0% means on/off control.

10%--Vdim=1.5Vdc  30%--Vdim=3.0Vdc  50%--Vdim=5.0Vdc



0%, 10%, 30%, 50% for your options









Detection pattern--



1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation





Daylight monitoring function--



Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required(ambient light is bright enough).



Note: Lux-Off sampling time---30s; Lux-On sampling time---10s.

  Lux-On function takes effect only when standby dimming period set at+∞.



1 Watt 5.8Gz C Band Motion Activated Wall Switch Zero - Cross Point Operation
