Dual Processor 12v Motion Sensor Switch 1-10V DC Dimming Signal Output Super Compact

China Dual Processor 12v Motion Sensor Switch 1-10V DC Dimming Signal Output Super Compact supplier
Dual Processor 12v Motion Sensor Switch 1-10V DC Dimming Signal Output Super Compact supplier Dual Processor 12v Motion Sensor Switch 1-10V DC Dimming Signal Output Super Compact supplier Dual Processor 12v Motion Sensor Switch 1-10V DC Dimming Signal Output Super Compact supplier

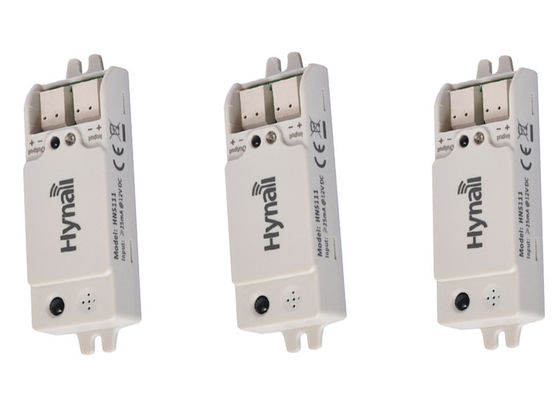

Large Image :  Dual Processor 12v Motion Sensor Switch 1-10V DC Dimming Signal Output Super Compact

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS111

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 50,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 12V /24V DC Output Signal: 1-10V Dimming Signal
Detection Range: Up To 12m In Diameter Mounting Height: 3-6m
Size: 75.1*27.1*13.8mm Operation Temperature: -20℃ ~ +70℃



DC input microwave sensor tri-level dimming function with remote control







Quick Detail:



1. Dual processor technology. real Lux-off & daylight monitoring function for built-in application

2. IR remote commissioning, easy setting and user friendly

3. Super compact, flexible to be integrated into any suitable fixtures





Size: 75.1*27.1*13.8mm





Features:

Microwave: 5.8GHz C-band microwave
Input current: ≧25mA
RoHs compliant
IP level: IP20





Settings ( Remote control IR12)



Permanent ON/OFF

Press the button, fixture goes to permanent on or permanent off mode, sensor is disabled.



Dim +/-

Press the button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lick it down when desired brightness is achieved.



Sensor mode

Press the button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.





Reset

Press the button, all settings go back to factory default settings.



Ambient learn

Press the button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This fixtures enables the fixture to dunction well in any real application circumstance.



Test mode

It is for testing purpose only, for users to check the dunctionality and choose the desired detection range.  The sensor goes to test mode auttomaticcally after pressing this button.
