Intelligent mirror sensor with daylight Harvesting function 5.8G microwave

China Intelligent mirror sensor with daylight Harvesting function 5.8G microwave supplier
Intelligent mirror sensor with daylight Harvesting function 5.8G microwave supplier Intelligent mirror sensor with daylight Harvesting function 5.8G microwave supplier Intelligent mirror sensor with daylight Harvesting function 5.8G microwave supplier Intelligent mirror sensor with daylight Harvesting function 5.8G microwave supplier

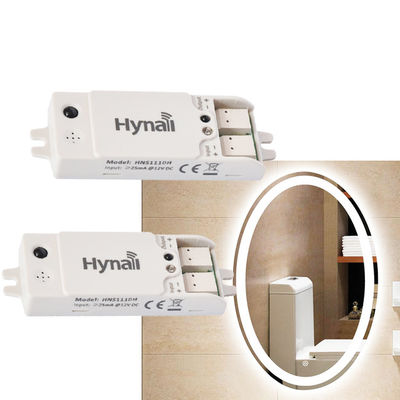

Large Image :  Intelligent mirror sensor with daylight Harvesting function 5.8G microwave

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS111DH

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Contact Now
Detailed Product Description
Input Voltage: 12V/24V DC Input Current: ≥25mA
Usage: Intelligent Mirror Detection Range: Max. 12m In Diameter
Control Type: Microwave Motion Sensor Operation Temperature: -20℃ ~ +70℃

Intelligent mirror sensor daylight Harvesting function with Remote Controllable



Daylight harvest function is a perfect choice to ingegrate with intelligent mirror for you





Features--



Input voltage:  12V/24V
Output signal: 1~10V dimming, and customized version is ok for you on request
Detection range: Up to 12m in diameter

Flexible to be integrated into any suitable fixtures.
Dual-processor technology, for real built-in application.
IR remote commissioning, easy setting

Mounting height: 3~6m.
Operation temperature: -20℃ ~ +70 ℃



Settings(by remote control IR11)--



Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.



Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.



Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.



Reset function

PressReset button, all settings go back to factory default settings.



Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.



Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.







Easy operation for daylight harvest--



Intelligent mirror sensor with daylight Harvesting function 5.8G microwave
