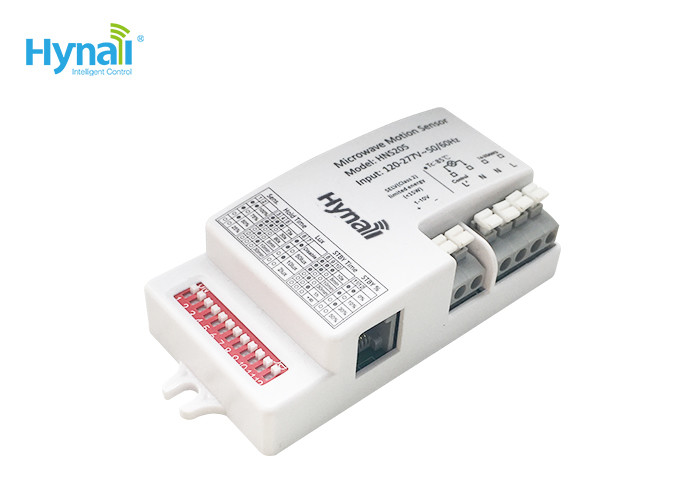

Detached Head AC Motion Sensor Switch DIP HNS205 1-10v Dimming

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS205
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 20,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 120~277V / 220~240V High Frequency 5.8GHz+/_75Hz
Usage Indoor And Outdoor Lighting Etc. Product Name AC Motion Sensor Switch
Warranty 5-year Size 102*45*26.5mm
High Light

Detached Head AC Motion Sensor Switch

,

DIP AC Motion Sensor Switch

,

10v Dimming DIP Sensor Switch

Leave a Message
Product Description

Model name: HNS205         1-10V dimming and detached head  AC input motion sensor switch



This model HNS205 is a multiple options' motion sensor, it has two detached head square and round two options, small size detached head will be avaiable for small space lighting, and DIP switch and remote control setting two options



Advantage:

1. Special designed for lightings which with limited space, ideal for LED panels, linear office lights with metal louvres,compact
    bulkheads,etc. Hide the sensor body and configure the small detached antenna head only.

2. Using for dual-processor technology, real Daylight monitoring function and lux off  for built-in application.

3. Memory function with one button commissioning, easy operation and user friendly.
4. Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay .
5. DIP switch + IR Remote control 2 channels setting. Automatically override each other upon the latest operation.

6. Customized service: Yes



Product Information:

Operating voltage: 120-277V AC, 50/60Hz.


Rated load: 400W @ 120V AC, (capacitive)
800W @ 200-277V AC, (capacitive)
Stand-by power: <1w.

RJ11 connection between the sensor body and antenna head, easy plug and play.
Detection range up to 12m in diameter.
Mounting height: 3~6m.
Operation temperature: -20 °c ~ + 70 °c.
IP rating: IP20.
