VR Adjustable 5V Microwave Sensor ON / OFF Control Dimming Control

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS103 / HNS103D
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Blister packaging
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 20,000pcs / month
Product Details
Input Voltage 5V DC(12V / 24V DC Version Available On Request) Input Current ≥20mA
Control Type On/off Control(HNS103), Dimming Control(HNS103D) Detection Range Max. 12m In Diameter
Mounting Height 3~6m Product Type Naked Board
High Light

12v motion detector

,

12v motion sensor switch

,

VR Adjustable Microwave Sensor

Leave a Message
Product Description

               VR Adjustable , 5V Microwave Sensor , ON / OFF Control & Dimming Control

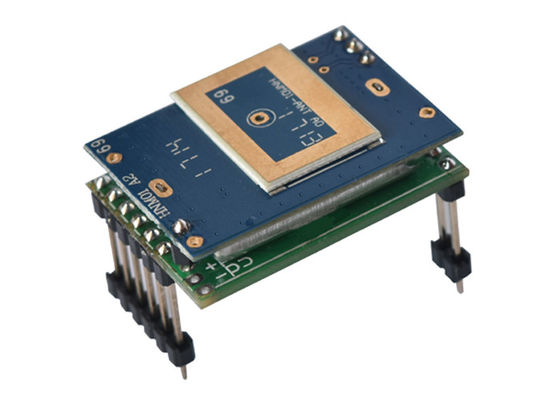

This is only a naked board sensor, with built-in MCU and VR setting adjustable, no mote extra software development needed, easy & fast for customers to integrate into their own PCB / system.

VR Adjustable 5V Microwave Sensor ON / OFF Control  Dimming Control 0

Features--



5.8GHz C-band microwave.

With built-in MCU, no more extra software development needed, easy & fast productization.

Input voltage 5V DC (12V / 24V DC version available on request).

Input current:≥20mA.

Output 5V DC high-low voltage & PWM signal.

Super compact, flexible to be integrated into any suitable fixtures.

Setting done by 3pcs individual VR, clockwise to 5V(max.), counter clock-wise to 0V(min.).

PIN connection, easy assembly.

Detection range up to max.12m in diameter.

Mounting height: 3~6m.





Settings--



VR Adjustable 5V Microwave Sensor ON / OFF Control  Dimming Control 1





PIN description--



VR Adjustable 5V Microwave Sensor ON / OFF Control  Dimming Control 2





Peripheral port extension--



VR Adjustable 5V Microwave Sensor ON / OFF Control  Dimming Control 3







Typical peripheral circuit application--



VR Adjustable 5V Microwave Sensor ON / OFF Control  Dimming Control 4



VR Adjustable 5V Microwave Sensor ON / OFF Control  Dimming Control 5
