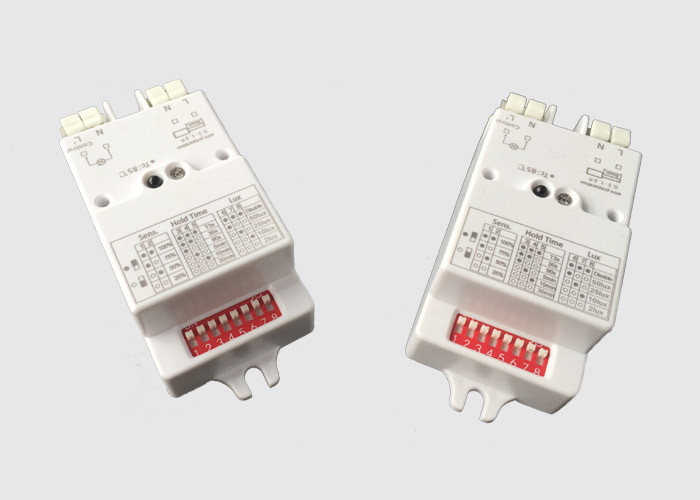

Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input

Place of Origin China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS201(US)
Minimum Order Quantity 400pcs
Price To be discussed
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 120~277V AC 60Hz Rated Load 200W(capacitive)
Stand-by Power <0.5W Control Type On / Off Control
Detection Range Max. 12m In Diameter Mounting Height 3~6m
Operation Temperature -20℃ ~ +70℃ IP Rating IP20
Product Guarantee 5 Years HF Frequency 5.8GHz
High Light

microwave motion detector

,

microwave sensor switch

,

Lux Off Microwave Motion Sensor

Leave a Message
Product Description

                                  On / Off Control , Presence Motion Detector , Lux - Off Function , 120 ~ 277v Input



Simple ON/OFF control for American market, input voltage 120~277V AC. Duall-PD daylight sensor to differently read the natural light and artificial light. Real Lux-Off function for built-in application.When there is motion detected, the lamp will be switched on automatically, and after the chosen hold-time, the lamp will be switched off.



Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input 0



Features--



Operating voltage: 120〜277V AC, 60Hz.

Rated load: 200W (capacitive)

Stand-by power: <0.5w.

Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

Detection range up to 12m in diameter.

Mounting height: 3〜6m.

Operation temperature: -20℃ ~ +70℃ .

IP rating: IP20.



Settings--



Detection range

Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input 1



Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input 2



Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable”: The sensor works always, even during daylight.

"50lux, 25lux": The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.

Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input 3





Wiring diagram--



Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input 4





Lux-Off function--



Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).



Note: Lux-Off sampling time--30s

Microwave Motion Sensor Module Lux - Off Function 120 ~ 277v Input 5
