MOQ: | 300pcs |
Price: | To be negotiated |
Standard Packaging: | Bubble bag + carton. (color box or blister package also available on request) |
Delivery Period: | 3~4 weeks for bulk orders |
Payment Method: | T/T |
Supply Capacity: | 30,000pcs / month |

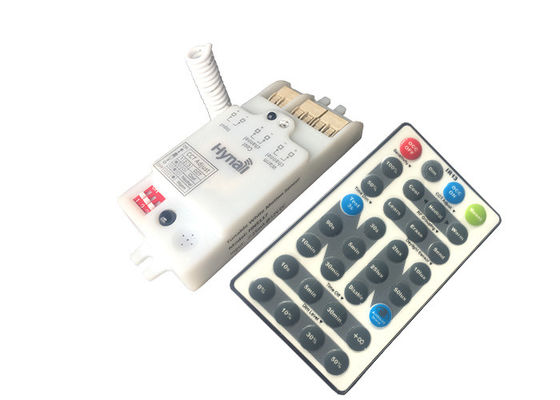

12V microwave sensor Tunable white motion sensor with 0~10V DC or PWM output
tunable white & tri-level dimming control
Quick Detail:
1. Dual daylight sensor
2. Tri-level dimming control
3. Tunable white
4. Remote control
Size:
Features:
1. | Operating voltage: | 12/24V DC |
2. | Input current: | ≥25mA |
3. | Detection range | up to 12m in diameter |
4. | CCT quick selection (DIP switch) | DIP switch + IR Remote control 2 channels CCT setting |
5. | Mounting height: | 3〜6m |
6. | Operation temperature: | -20℃ ~ +70℃ |
7. | IP rating: | IP20 |
8. Super compact, flexible to be integrated into any suitable fixtures.
9. Dual-processor technology, real Lux-Off function for built-in application.
10. IR remote commissioning, easy setting and user friendly.
11.Two channels output 0~10V / PWM signal, achieve color temperature adjustments.
12.Easy access by DIP switch to shift between cool, white and warm.
13. RoHS compliant.
Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.
Settings:
![]() |
