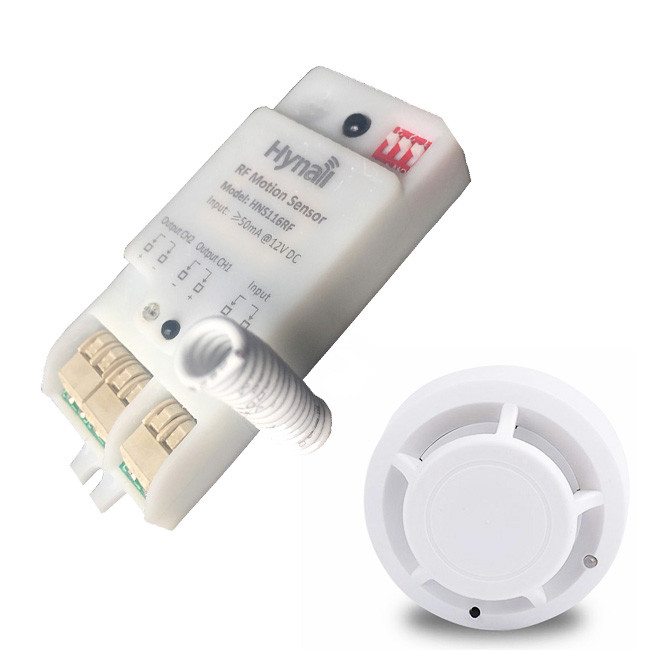

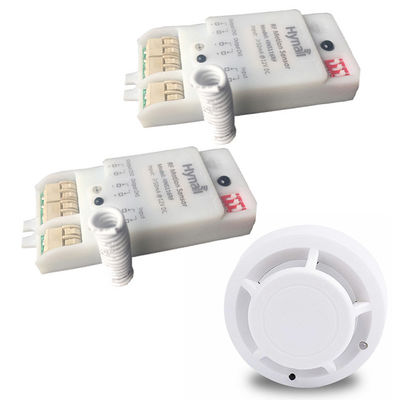

Microwave Security Motion Sensor Switch RF Wireless Cluster Control IP20 Grade

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS116RF
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: 12/24V DC 60Hz RF Frequency:: FSK 915MHz (868MHz EU Version Available)
RF Transmission Distance:: Max. 50m In Open Area Color: White
Usage: Security Detector Product Name: Security Sensor
High Light:

microwave motion sensor

,

motion sensor switch


Product Description

Security sensor with 5.8GHz microwave, RF wireless, perfect for intelligent security sytem







Size:  86*33*15.6mm  Customized products and services for you all the time







Features:



5.8GHz C-band microwave

Real Lux-Off function for built-in application by dual-processor technology

Easy setting by remote control

2 separate output channels for your options

RF wireless used in security business, perfect for new microwave security sensor

2 options for you included the DIP switch and remote control.

Output: 0~10V / PWM signal, tri-level dimming control.

RoHS compliant.

Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.



Settings:



OCC OFF FUNCTION

Press the button, the motion sensor will be disabled.



Dim

Press the button to automatically dim up or down the light brightness during hold-time from 10% to 100%.



OCC ON FUNCION

Press the button, the sensor starts to work and all settings remain the same as the latest status before the application was on/off.



Reset function

Press the button all sensor settings go back to factory default settings.

Factory default setting on request.



Microwave Security Motion Sensor Switch RF Wireless Cluster Control IP20 Grade 0
