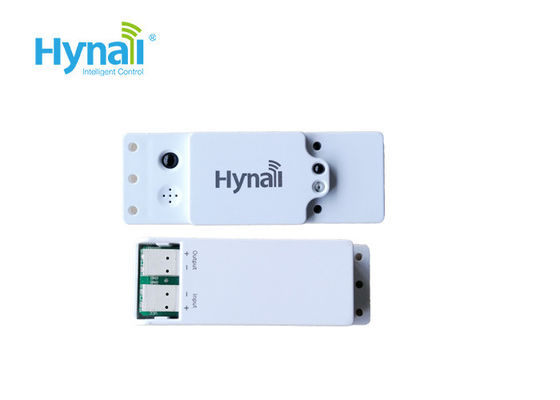

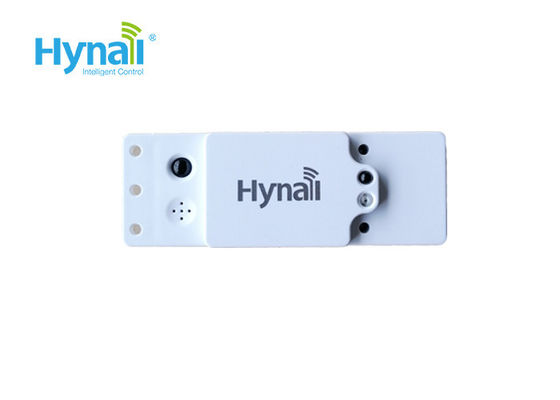

HNS112 Special Microwave Movement Sensor 25mA IP20 For Tri Proof Light Dimming

  • HNS112 Special Microwave Movement Sensor 25mA IP20 For Tri Proof Light Dimming
  • HNS112 Special Microwave Movement Sensor 25mA IP20 For Tri Proof Light Dimming
  • HNS112 Special Microwave Movement Sensor 25mA IP20 For Tri Proof Light Dimming
  • HNS112 Special Microwave Movement Sensor 25mA IP20 For Tri Proof Light Dimming
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS112
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12V DC (customized Voltage Is Available) Input Current ≥25mA
Setting DIP Switch Model Name HNS112
IP Rating IP20 Operation Temperature -20℃ ~ +70℃
High Light

HNS112 Special Microwave Movement Sensor

,

Microwave Movement Sensor 25mA

,

IP20 Remote Control Microwave Sensor
Leave a Message
Product Description

12V Microwave Sensor , Remote Controllable , For Tri - Proof Fixture tri-level dimming and daylight monitoring function



1~10v dimming output, special housing designed for Tri-proof fixture application.





Features--

5V &12V & 24V DC version available on request
Input current:≥25mA
Dual-processor technology, real Daylight monitoring function for built-in application
Output signal can be customized





Settings(by remote control IR12)--



Permanent ON/OFF function

Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.



Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.



Sensor mode

Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.



Reset function

Press”Reset” button, all settings go back to factory default settings.



*Factory default settings--

Sensitivity=100%

Daylight sensor=disable

Hold time=90s

Twilight time=5min

Twilight level=10%



Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.



Test mode



*Test mode defaulted settings—

Daylight sensor=disable

Hold time=3s

Twilight time=N/A

Twilight level=N/A



Daylight monitoring function



HNS112 Special Microwave Movement Sensor 25mA IP20 For Tri Proof Light Dimming 0
