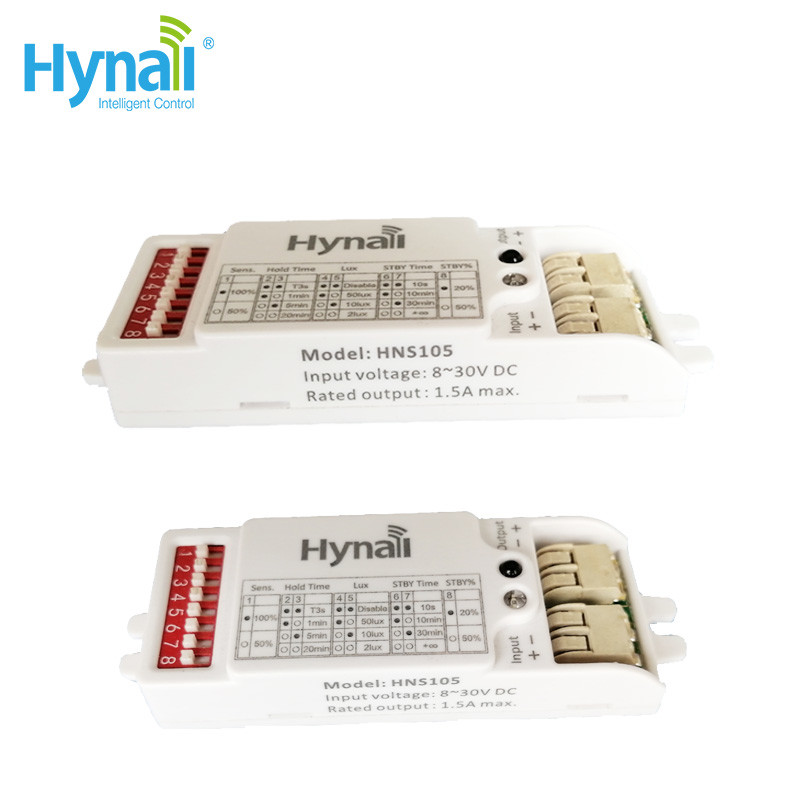

Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS105
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month
Product Details
Name 12V Microwave Sensor Feature Directly Connect The Load With Non-dimmable Driver
Rated Load 18w@12v; Max.36w@24v Current Max. 1.5A
Design Solar System Setting DIP Switch
High Light

12V Daylight Monitoring Microwave Sensor

,

18w Daylight Monitoring Microwave Sensor

,

1.5A Solar System Microwave Sensor

Leave a Message
Product Description

12V microwave sensor  8~30V DC input voltage, special design for solar system fixture,

low voltage halogen lamp fixture and connect directly non-dimmable constant voltage driver



Features:

1. Setting: 8 pin DIP switch
2. Rated output: 1.5A max. (e.g. max.36w@24v;max. 18w@12v)
3. Detection range: Up to 12m in diameter
4. Mounting height: max. 6m (can be customized)
5. IP rating IP20





Structure and size:

Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 0 Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 1
Detection range 100% 50%     Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 2
Hold time T3s 1min 5min 20min Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 3
Daylight sensor Disable 50lux 10lux 2lux Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 4
Stand-by period 10s 10min 30min infinity Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 5
Stand-by dimming level 20% 50%     Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 6



Application Scenes



Available for office, warehouse, car parking etc.





Wiring diagram:



Solar System 18w 12V Daylight Monitoring Microwave Sensor 1.5A 7



FAQ



1.What is your lead time?
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.


2.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.



3. How long is for Warranty?

- 5 years
