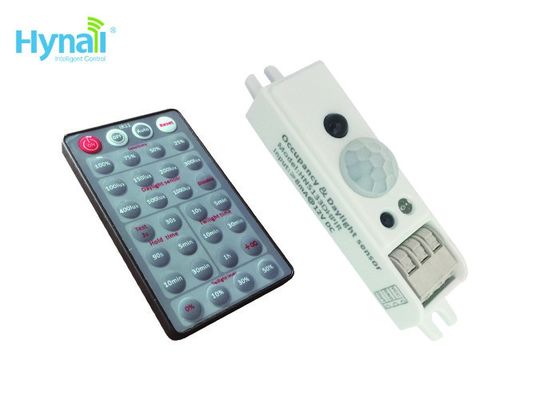

25mA PIR 12v 3m Remote Control Microwave Sensor 0-10v Dimming

MOQ:	300pcs
Price:	To be negotiated
Standard Packaging:	Bubble bag + carton. (color box or blister package also available on request)
Delivery Period:	3~4 weeks for bulk orders
Payment Method:	T/T
Supply Capacity:	50,000pcs / month

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen, China

Brand Name

Hynall

Certification

RED, FCC, RoHS

Model Number

HNS133PIR

Input Voltage:

12 V Dc Standard Version

Input Current:

≥25mA

Usage:

Corridor Etc.

Type:

12v PIR Motion Sensor

Size:

50*13*13mm

Name:

PIR Motion Sensor Module

Highlight:

3m Remote Control Microwave Sensor

12V Remote Control Microwave Sensor

25mA PIR Motion Sensor Module

Product Description

12v infrared PIR motion sensor with tri-level dimming and daylight monitoring function

Features:

1.	12V DC Input voltage
2.	0~10V output signal
3.	Infrared PIR sensor and daylight sensor
4.	Max. 4m in diameter for detection range
5.	Input current:≧25mA
6.	Super compact, flexible to be integrated into any suitable fixtures.
7.	Easy operation and installation
8.	Max. 3m for mounting height:
9.	RoHs compliant

Structure and size:

Reset function
Press “Reset” button, all settings go back to factory default settings.
Factory default settings--
Sensitivity=100%
Daylight sensor=disable
Hold time=90s
Twilight time=5min
Twilight level=10%

Permanent ON/OFF function

Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
Settings(Remote control IR12)

press “Auto”, “Reset” or “Ambient learn” to quit this mode.

Dim +/-
After desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lockndown the new brightness again.

Sensor mode
Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.

Wire diagram:

25mA PIR 12v 3m Remote Control Microwave Sensor 0-10v Dimming 3
