Lux Off 100mA 12v Microwave Sensor 1-10v Dimming 5.8GHz C Band

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS111
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 50,000pcs / month
Detail Information
Input Voltage: 12V DC For Standard Version Input Current: ≥25mA
Usage: Commercial Lighting Type: 12v Microwave Sensor
Size: 75.1*27.1*13.8mm IP Rating: IP20
High Light:

Lux Off 12v Microwave Sensor

,

100mA 12v Microwave Sensor

,

C Band Daylight Monitoring Sensor


Product Description

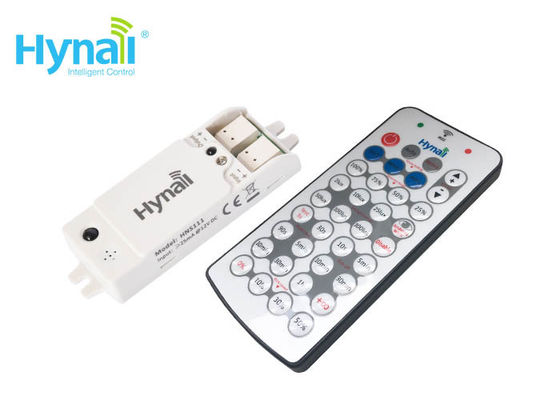

12V microwave sensor HNS111 Available customized parameters, logo, model name etc.



1~10v / 0-10V/ PWM dimming output available, 12V DC input microwave motion sensor .





Quick Detail:



1. Memory function with one button commisioning, easy operation and user friendly.

2. Tri-level dimming and daylight monitoring function, daylight and microwave intergrated

3. IR remote commisioning, easy setting and user friendly.

4. Sink current: max. 100mA



Features:



1.           Input voltage 12V-24 DC
2.           1~10V /0-10V imming signal.
3.           5.8GHz C-band microwave motion sensor
4.           Detection range for ceiling mounting: up to 12m in diameter
5.           Input current:≧25mA
6.

Small size, flexible to be integrated into any suitable fixtures.

7.

Real built-in application. Lux -Off & Daylight monitoring function.

8.            Mounting height: 3~6m
9.            RoHs compliant
