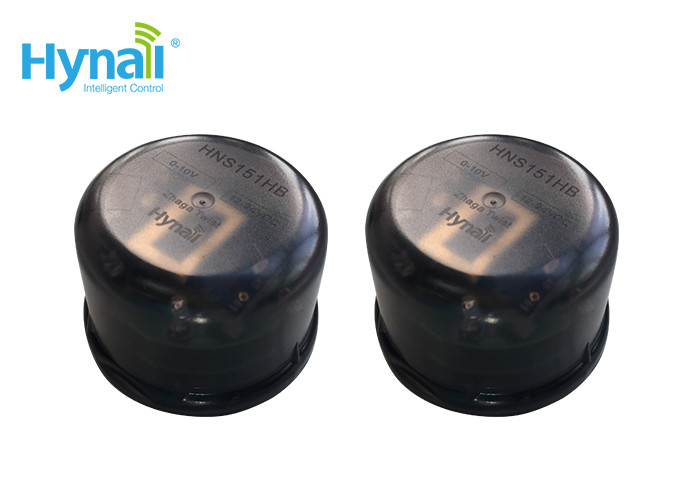

12m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65

MOQ: 50
Standard Packaging: 45*30*23cm
Delivery Period: 3~4 weeks
Payment Method: T/T
Supply Capacity: 20000 per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
hyanll
Model Number
HNS151HB
Usage:
UFO, Highbay Light Etc.
IP Rating:
IP65 Level
Name:
Zhaga Book18 Microwave Motion Sensor
Output:
0~10V Dimming
Size:
∅ 50mm
Product:
Dimming Motion Sensor
Highlight:

12m Mounting Height Zhaga Book 18

,

Zhaga Book 18 0-10v Dimming

,

30mA IP65 Dimming Motion Sensor

Product Description

 Model: HNS151HB   Connecting with Zhaga book 18 socket

Tri-level dimming motion sensor  high bay version max. 12m mounting height



Features: ​

  • 12V DC input voltage
  •  ≥30mA input current
  • *0~10V output signal
  •  50mm in diameter only
  • IR remote control setting
  • max. 16~18m in diameter detection range
  • max. 12m mounting height
  • -20 °c ~ + 70 °c operation temperature
  • IP65 rating
  • Memory function with simple three steps, easy operation and user friendly.


Specially designed for UFO highbay fixtures, shoeboxes,wallpacks, simple plug and play.


If the lighting fixture manufacturers / contactors do not want the sensor function, they just need to easily

remove the sensor head and put the cover cap on, the fixture becomes standard non-sensor control fixture.






Parameters:

Input DC Input Voltage 12V DC
Output Signal 0-10V DC dimming
Wiring Zhaga Book 18 connecting base
Sensor Parameters Operating Frequency 5.8 GHz C-band
Hold time T3s /30S/90S/5min/10min/30min
DIM Level 0%/ 10%, 30%, 50%
DIM off 10S/5min/10min/30min/1h/+∞
Sensitivity 25%/50%/75%/100%
Daylight Sensor 2lux/10Lux/25Lux/50Lux/100lux/300lux/ Disable
Detecting Radius See detection pattern
Mounting Height Up to 12m
Detecting Angle 150°(wall mounting) and 360°(ceiling mounting)

Operating

Environment

 Operating Temperature -20℃-+70℃

12m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65 012m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65 1

12m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65 212m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65 312m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65 4
