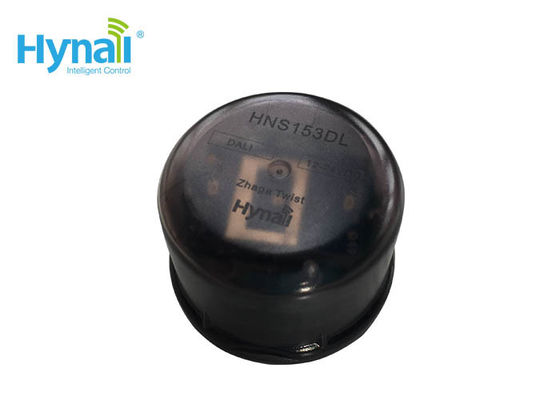

12V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output

MOQ: 400pcs
Price: Negotiable
Standard Packaging: Bubble bag + carton. (color box or blister package also available on request)
Delivery Period: 4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 50,000pcs / month
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNS153DL
Input Voltage:
12V DC Normal Version
Switched Power:
Max. 60mA,30 Devices
HF Frequency:
5.8GHz C-band Microwave
Type:
Independent DALI Dimming Motion Sensor
Detection Range:
Up To 16-18m In Diameter
Mounting Height:
Max. 12m For Ceiling Mounting
Highlight:

HNS153DL Independent DALI Motion Sensor

,

12V DC DALI Motion Sensor

,

5.8GHz DALI Dimming Motion Sensor

Product Description

 Model name: HNS153DL   Independent DALI dimming motion sensor

   5.8GHz C-band microwave motion sensor DALI dimming and daylight monitoring function

  • If the contactors and the lighting fixture manufacturers do not want the sensor function, they just
  • need to easily remove the sensor head and put the cover cap on, the fixture becomes standard
  • non-sensor control fixture.



        Features:





Parameters:

Input Input Voltage 12V DC normal version
Output Signal DALI output
Wiring Zhaga Book 18 coonecting base
Sensor Parameters Operating Frequency 5.8 GHz C-band DALI motion sensor
Hold time T3s / 30s / 90s / 5min / 10min / 30min
DIM Level 0%/ 10%, 30%, 50%
DIM off 10s / 5min / 10min / 30min / 1h / +∞
Sensitivity 25% / 50% / 75% / 100%
Daylight Sensor

2lux/10Lux/25Lux/50Lux/100lux/300lux/ Disable
Detecting Radius See detection pattern
Mounting Height Max. 12m for ceiling mounting
Detecting Angle 150°(wall mounting) and 360°(ceiling mounting)

Operating

Environment

 Operating Temperature -20℃-+70℃
  • Input voltage: 12V DC, 24V DC can be customized.
  • Input current: ≥30mA.Bi-level, Tri-level dimming and DALI broadcast output.
  • Size: 50mm in diameter only, small and easy enough to be used built-in.
  • Intelligent photocell to measure and differentiate natural light from LED light even when used built-in.
  • One button commissioning for memory function, easy operation and user friendly.
  • User friendly and easy setting for IR remote commissioning.
  • Detection range up to max. 16~18m in diameter.
  • Mounting height: max.12m.





12V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 012V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 112V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 212V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 312V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 412V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 512V DC HNS153DL Independent DALI Motion Sensor 5.8GHz DALI Output 6
