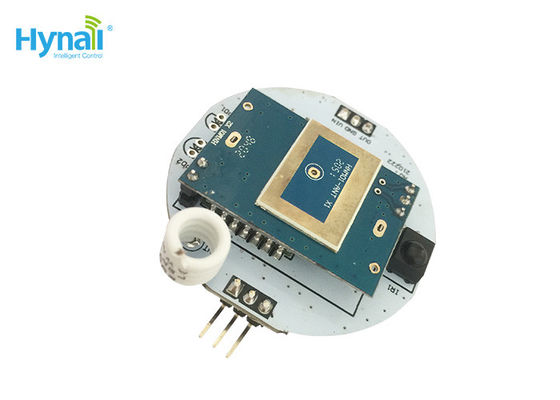

HNS106RF Small Size Microwave Motion Sensor Daylight Monitoring RF 50mA

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS106RF
Minimum Order Quantity: 100pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: 12V DC RF Frequency:: FSK 915MHz ( US)
RF Transmission Distance: Up To 50m In Open Area Function: RF Wireless Grouping And Tri-level Dimming
Usage: Corridor, Parking, Garage, Etc. Product Name: RF Wireless Microwave Motion Sensor
High Light:

Small Size Microwave Motion Sensor

,

Daylight Monitoring Microwave Motion Sensor

,

50mA Microwave Movement Sensor


Product Description

12V DC microwave sensor RF Wireless grouping remote control setting HNS106RF



RF wireless cluster control, ideal for retrofit project /parking garage / staircase / corridor applications,easy installation, free of wiring.



Features:

  • Function: 0-10v dimming, RF wireless grouping, two channels, daylight monitoring function
  • Input voltage: 12V DC
  • Output signal:0-10V dimming
  • 5.8GHz C-band
  • RF frequency: FSK 915MHz (868MHz EU version available)
  • Input current: ≥50mA.
  • RF transmission distance : max. 50m in open area.
  • Dual-processor Technology, real Lux-Off & Daylight monitoring function for built-in application.
  • IR remote commissioning, easy setting and user friendly.

Parameters: Can be customized on requirement

Input DC Input Voltage 12V DC
Output Signal 0-10V / PWM
Sensor Parameters Operating Frequency 5.8 GHz, for lighting or lighting system
Hold time T3s /30S/90S/5min/10min/30min
Stand-by dimming level 0%/ 10%, 30%, 50%
Stand-by period 10S/5min/30min/+∞
Detection range 50%/100%
Daylight Sensor 2lux/10Lux/25Lux/ 50Lux/Disable
Mounting Height 6m Max.
Detecting Angle 150°(wall mounting) and 360°(ceiling mounting)

Operating

Environment

Operating Temperature -20℃-+70℃
