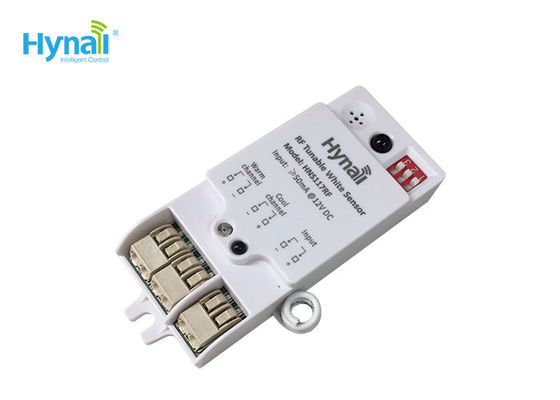

Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless

  • Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless
  • Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless
  • Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless
  • Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS117RF
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12V DC RF Frequency FSK 868MHz US Version /915MHz EU Version
RF Transmission Distance In Open Area Up To 50m IP Rating IP20
Usage Linear Light, Ceiling Light, And LED Panel Etc. Product Name 12V Microwave Sensor
Warranty 5 Years Size 73.1*33*15.6mm
High Light

Tunable White 12V Microwave Sensor

,

Tri Level Dimming 12V Microwave Sensor

,

RF Wireless Microwave Movement Sensor
Leave a Message
Product Description

RF wireless 12v microwave sensor with daylight monitoring, tunable white & tri-level dimming control



Dual-processor Technology, real Lux-Off & Daylight monitoring function for built-in application.

Two channels output 0~10V / PWM signal, achieve color temperature adjustment and tri-level dimming



Features:

  • Function: tri-level 0-10v dimming, RF wireless grouping, tunable white, daylight monitoring function
  • Input voltage: 12V DC- 24V DC
  • Output signal: PWM / 0-10V
  • RF frequency: FSK 915MHz US version / 868MHz EU version
  • Input current: ≥50mA.
  • RF transmission distance : max. 50m in open area.
  • IR remote commissioning, easy setting and user friendly.

Parameters: Can be customized on requirement

Input DC Input Voltage 12V DC / 24V DC
Output Signal 0-10V / PWM signal output
Sensor Parameters Operating Frequency 5.8 GHz, for lighting system or lighting fixture
Hold time T3s /30S/90S/5min/10min/30min
Stand-by dimming level 0%/ 10%, 30%, 50%
Stand-by period 10S/5min/30min/+∞
Detection range 50%/100%
Daylight Sensor 2lux/10Lux/25Lux/ 50Lux/Disable
Mounting Height 6m Max.
Detecting Angle 150°(wall mounting) and 360°(ceiling mounting)

Operating

Environment

 Operating Temperature -20℃-+70℃

Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless 0Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless 1Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless 2Tunable White 12V Microwave Sensor Tri Level Dimming RF Wireless 3
