DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor

  • DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor
  • DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor
  • DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS101
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name HNS101 Input Current ≥25mA
Output Signal 5V High-low Voltage Output Signal Type 5.8GHz Microwave Sensor
Color Green Operation Temperature -20℃ ~ +70℃
High Light

DIP Switch Microwave Sensor

,

12V Microwave Sensor On Off

,

25mA Microwave Movement Sensor
Leave a Message
Product Description

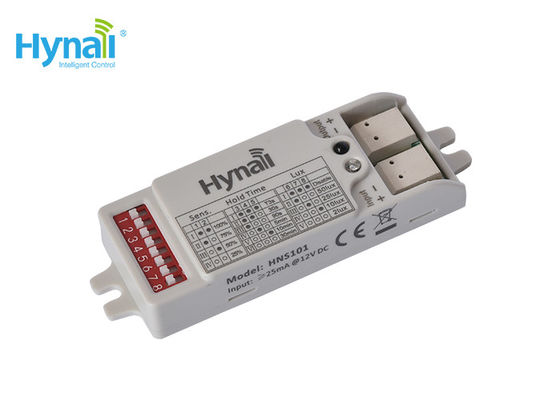

Model name: HNS101 12V microwave senor on/off and lux off function



Product Information:

Frequency: 5.8GHz C-band microwave.
Input voltage 12 - 24V DC / Input current: ≥25mA.
Output signal: 5V DC high-low voltage.





Super compact size, flexible to be integrated into any suitable intelligent fixtures.





Thanks for dual-processor technology, real Lux-Off function for built-in application.





8 pin DIP switch setting: easy operation, and multiple options to meet different customer demands.







Parameters:

Detection range


Detection range can be reduced by selecting the combinationon the DIP switches to fit precisely each application.

 DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 0

Hold-time


Hold-time means the time period to keep the lamp on 100%after motion detected.



Note:

* when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range.


In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps

a cycle of 3s on and 2s off.

 DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 1

Daylight sensor




Daylight sensor means the daylight threshold to enable or disable the sensor function.




“Disable”: the sensor works always, even during daylight.


“50lux, 25lux”: the sensor works only in twilight.


“10lux, 2lux”: the sensor works only in the dark.

 DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 2



DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 3

DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 4

DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 5

DIP Switch 12V Microwave Sensor On Off HNS101 25mA Microwave Movement Sensor 6

Advantage:

Customized service and high quanlity products

We can provide more kinds of intelligent solution plans on requirement



Package Information:

234pcs / inner box, 468pcs/ carton
