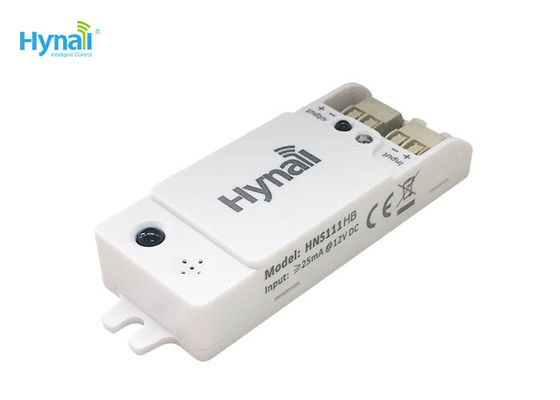

25mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB

25mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB

MOQ: 300pcs
Price: To be negotiated
Standard Packaging: Bubble bag + carton. (color box or blister package also available on request)
Delivery Period: 3~4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 30,000pcs / month
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNS111HB
Input Voltage:
24v Customized Version 12v Standard Version
Input Current:
25mA And >25mA
Control Type:
IR22 Remote Control
Detection Range:
Max. ∅16-18m
Mounting Height:
10~12m For Ceiling Mounting
Operation Temperature:
-20℃ ~ +70℃
Highlight:

25mA High Bay Microwave Sensor

,

12m Mounting High Bay Microwave Sensor

,

Infrared Remote Microwave Movement Sensor

Product Description

Model name: HNS111HB                   Max. 12m high bay 0-10v dimming 12V microwave sensor



This model is a max. 12m for ceiling mounting low voltage small size microwave sensor.  You can use for warehouse lamp / canopy / shoebox / gas station lamp / stadium lamp, dual- processor daylight sensor for real built-in use, Reinforced detection range up to 12~15m high, infrared remote IR12 to change the parameters easily.



Advantage:

1. Delivery, quality and service gurantees:

   (1) Delivery: 1-2 weeks in stock, 3-4 weeks without stock

   (2) Quality: defective rate of the products:  0.1% and 5 years gurantee

   (3) Customized service and fast-responding service



2. Detection range up to 18m in diameter. Mounting height: 10~12m.

3. Thanks for dual-processor technology, really achieve daylight monitoring function for built-in application.

4. Customized service: Yes



Product Information:

5.8GHz C-band microwave.


Input voltage: 12 - 24V DC .
Input current: ≥30mA.


*1~10V DC output signal.

Memory function with one button commissioning, easy operation and user friendly.




IR remote commissioning, easy setting and user friendly.

25mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB 0

25mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB 125mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB 225mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB 325mA High Bay Microwave Sensor 12m Mounting Infrared Remote HNS111HB 4



Settings (by remote control IR22)

Note:
The buzzer short beeps once when sensor successfully receives RC signal after pressing any
buttons expect for“APPLY ”. When“twilight level”set at 0%, it becomes ON/OFF control.



Test mode:

“Test mode” is for testing purpose only, for users to check the functionality and choose the desired detection range.
The sensor goes to test mode automatically after pressing this button.
Users can quit this mode by pressing“ ON/OFF”,“ Reset”, or any button of“ Hold time”. The sensor settings are
changed accordingly.



Test mode defaulted settings--
Daylight sensor=disable
Hold time=3s
Twilight time=N/A
Twilight level=N/A
