Independent DALI Motion Sensor 220v-240v AC Input Detached Head

  • Independent DALI Motion Sensor 220v-240v AC Input Detached Head
  • Independent DALI Motion Sensor 220v-240v AC Input Detached Head
  • Independent DALI Motion Sensor 220v-240v AC Input Detached Head
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS205DL
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 20,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DALI Motion Sensor Type Independent DALI Motion Sensor
Usage Linear Office Lights With Metal Louvres, Compact Bulkheads Etc. Setting IR22, DIP Switch And Push Dim
Detached Head ANT01 Square / ANT02 Round Size 102*45*26.5mm
High Light

Independent DALI Motion Sensor

,

240v AC DALI Motion Sensor

,

Detached Head Light Switch Sensor
Leave a Message
Product Description

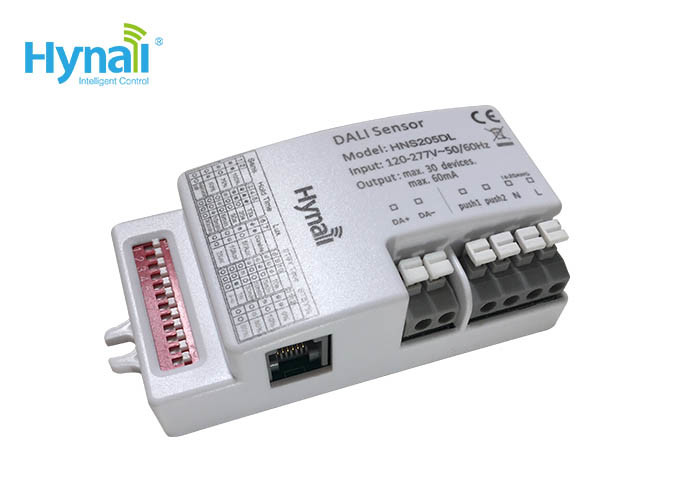

Model name: HNS205DL        220-240V AC input independent DALI motion sensor



This model HNS205DL has several versions to expand like Daylight harvest DALI sensor, Daylight harvest DALI daylight sensor etc..



Advantage:

1. 1-10V driver is being replaced by DALI driver. This sensor contains a DALI power supply circuit, which gives DALI output to the

     driver to carry out the sensor on/ off and dimming command.

2. Detached head design particularly for fixtures which with limited space, ideal for LED panels, linear office lights with metal louvres, compact          bulkheads,etc. Hide the sensor body and configure the small detached antenna head only.

3. Easy operation, and setting, memory function with one button commissioning, user friendly.

4. Customzied service: Yes



Product Information:

5.8GHz C-band microwave motion sensor, tri-level dimming control.


Operating voltage: 120-277V AC, 50/60Hz.


Tri-level dimming and DALI broadcast output.
Stand-by power: <1w.

DIP switch + IR Remote control 2 channels setting.
Automatically override each other upon the latest
operation.
RJ11 connection between the sensor body and antenna
head, easy plug and play.


Detection range up to 12m in diameter.
Mounting height: 3~6m.
Operation temperature: -20 °c ~ + 70 °c.
IP rating: IP20

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 0

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 1

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 2

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 3

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 4

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 5

Independent DALI Motion Sensor 220v-240v AC Input Detached Head 6
