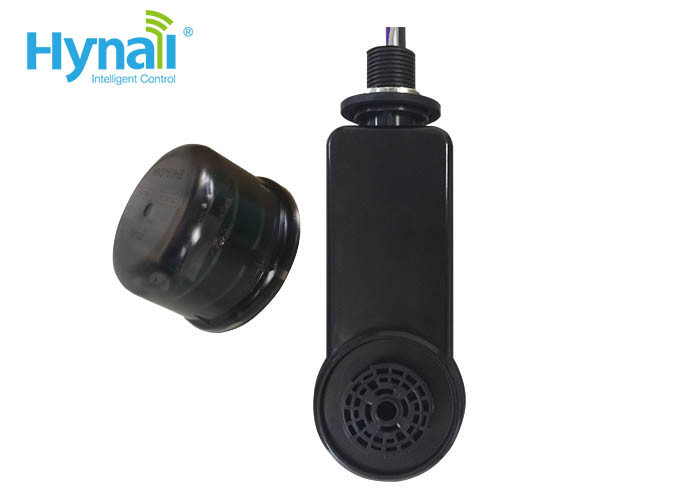

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control

  • 12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control
  • 12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control
  • 12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control
  • 12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control
Place of Origin China
Brand Name hyanll
Model Number HND151HB
Minimum Order Quantity 50
Packaging Details 45*30*23cm
Delivery Time 3~4 weeks
Payment Terms T/T
Supply Ability 20000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Flood Fixture, Highbay Lights Etc. IP Rating IP65 Level
Name Zhaga Book 18 Output 0~10V Signal
Size 50mm In Diameter
High Light

Dimming Control Zhaga Book 18

,

12m Zhaga Book 18

,

120VAC Microwave Motion Sensor Switch
Leave a Message
Product Description

Model name: HND151HB      AC input dimming zhaga book18 motion sensor switch



This model is a special design for that there is no dimming driver with 12V aux. power, or special flood lights. Its operation and installation is very easy. You can connect 3 wires to finish wiring.



Advantage:

1.  Multiple functions: 0-10v tri-level dimming and daylight monitoring function

2. AC input, providing a solution for special fixtures

3. IP65 waterproof and standard zhaga book18 structure 2 in 1, easy exhand more function or options

4. Customized service: Yes



Product Information:

5.8GHz C-band microwave motion sensor

 Tri-level dimming control
Operating voltage: 220-240V AC, 50Hz.(EU version)
120-277V AC, 60Hz.(US version)
Rated load: 400W @ 120V AC, (capacitive)
800W @ 200-277V AC, (capacitive)
Output signal:

0~10V DC output signal.

(PWM version available on request)
Stand-by power: <1w
Mounting height:  max.12m

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 0

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 1

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 2

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 3

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 4

Setting by remote control IR22

12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 5

Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.


press “Auto”, “Reset” or “Ambient learn”to quit
this mode.
12m Zhaga Book 18 HND151HB 120-277VAC Input High Bay Dimming Control 6 Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
