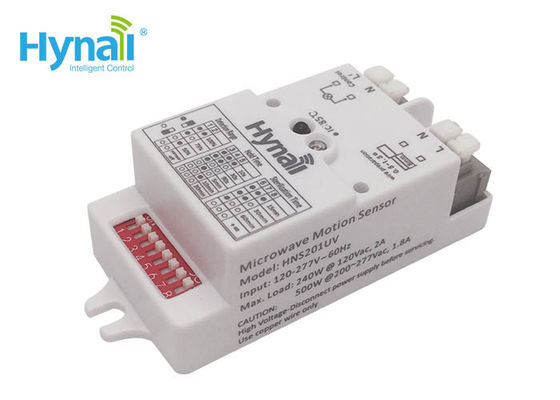

HNS201UV Uv Lamp AC Motion Sensor Switch Off And On Sterilization Timer

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS, ETL
Model Number: HNS201UV
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: 120~277V 60Hz Rated Load: Capacitive 200-2770V AC @ Max. 400W
Stand-by Power: <0.5W Control Type: Off When Human Movement
Model Name: HNS201UV Mounting Height: Max. 6m For Ceiling Mounting
Operation Temperature: -20℃ ~ +70℃ Settting: DIP Switch, Easy Adjustment
High Light:

Uv Lamp Motion Sensing Light Switch

,

Sterilization Timer Motion Detector Switch

,

Pir Movement Sensor Switch


Product Description

Model name: HNS201UV            UV lamp ac motion sensor switch



This sensor is special design for uv lamp because of Covid-19. It will acheieve the function that the light is off when human movement, and after hold time, the light will be on and keep the sterilization in the process of sterilization timer.



Advantage:

1. DIP switch setting, easy adjustment, simple operation.

2. Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and lifetime of the relay.

3. Parameters have multiple settings on requirement

4. Customized service: YES



Product information:



off/on control and sterilization timer function 5.8GHz C-band microwave motion sensor
Operating voltage: 120-277V AC, 60Hz.(US version); 220-240V AC, 50Hz.(EU version)
Rated load: Capacitive 240W @ 120VAC;500W @ 200-277VAC

 Stand-by power: <0.5w. CE, ETL certification

Zero-cross point operation, secure the max. load and life time of the relay .
Ceiling mounting: Mounting height: max. 6m and detection range up to 12m diameter.
Operation temperature: -20 °c ~ + 70 °c. And RoHS compliant.



HNS201UV Uv Lamp AC Motion Sensor Switch Off And On Sterilization Timer 0HNS201UV Uv Lamp AC Motion Sensor Switch Off And On Sterilization Timer 1HNS201UV Uv Lamp AC Motion Sensor Switch Off And On Sterilization Timer 2

HNS201UV Uv Lamp AC Motion Sensor Switch Off And On Sterilization Timer 3
