HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65

  • HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65
  • HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65
  • HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65
  • HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65
  • HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65
  • HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS132DL
Minimum Order Quantity 50pcs
Price Negotiable
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 4 weeks for bulk orders
Payment Terms T/T
Supply Ability 50,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12-24V DC Setting DALI Bus
Function On/off Output Signal DALI
Input Current Max. 6mA Operation Temperature -10 °c ~ + 50 °c
High Light

Zhaga Book 20 Small PIR Sensor

,

DALI-2 D4i Small PIR Sensor

,

Waterproof IP65 PIR Sensor
Leave a Message
Product Description

Model name: HNS132DL Zhaga book20 DALI-2 D4i input device PIR motion sensor

Quick detail of dali ip65 input device PIR motion sensor HNS132DL

1, Both DALI & sensor power supply via: DALI-2.
2, Stand-by current consumption: max. 6mA.
3, Daylight sensor lux setting: 10-2,000 lux.
4, Individual adjustment of parameters with configuration software.
5, Super compact, ideal for office / commercial lighting.
6, D4i approved, fully compatible with DALI Part 351(Type B).
7, Detection range: max. 6-8m in diameter.
8, Mounting height: max. 4.5m.
9, Operation temperature: -10 °c ~ +50 °c.
10, RoHS compliant.
11, IP rating: IP65.


DALI-2 & D4i standards

EN62386-101 Ed.2
EN62386-103 Ed.1
EN62386-303
EN62386-304
EN62386-351 Type B


Setting:
DALI bus setting

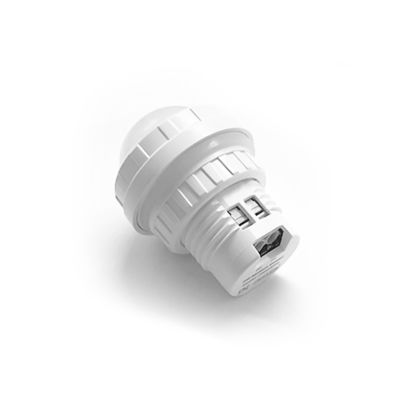

Description of PIR sensor HNS132DL

HNS132DL is a Zhaga book20 dali sensor, special design for indoor lighting etc.

12V-24V DC input, dali 2.0 output via DALI Bus



HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65 0

HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65 1HNS132DL Zhaga Book 20 Small PIR Sensor DALI-2 D4i Standards Waterproof IP65 2




Zhaga book20 series
No. Series Controll Type Model name Function
1 Zhaga book20 Single light PIR+Daylight sensor HNS132PIR/HNS132CLPIR 12V DC input, 0-10V output, tri-level dimming and daylight monitoring / constant lux function by remote control setting
2 Daylight sensor HNP132CL 12V DC input, 0-10V output, constant luxfunction by remote control setting
3 DALI2.0 D4i Daylight sensor+DALI HNP132CLDL 12-24V DC, DALI output, constant lux function, remote control and DALI BUS setting
4 PIR+Daylight sensor+DALI HNS132CLDLPIR 12-24V DC, DALI output, tri-level dimming and constant lux function, remote control and DALI BUS setting
5 PIR+DALI HNS132DL 12-24V DC, DALI output, DALI BUS setting input device
6 PIR+Daylight sensor+DALI HNS132DLPIR 12-24V DC, DALI output, tri-level dimming and daylight monitoring function, remote control and DALI BUS setting
7 SILVAIR bluetooth mesh BLE+PIR+Daylight HNB132PIR 12V DC input, 0-10V output, tri-level dimming and constant lux function by silvair bluetooth mesh APP control
8 SILVAIR bluetooth mesh+DALI 2.0 D4o BLE+DALI+PIR+Daylight HNB132DLPIR 12V-24V DC input, DALI output,tri-level dimming and daylight harvest, bluetooth mesh function by silvair bluetooth mesh APP control
9 DALI Bluetooth mesh converter HNB132DL 12V-24V DC input, DALI output, bluetooth mesh function by silvair bluetooth mesh APP control



FAQ:



Q1. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample of.



Q2: Do you offer guarantee for the products of pir detector?

A: Yes, we offer 5 years warranty to our products.
