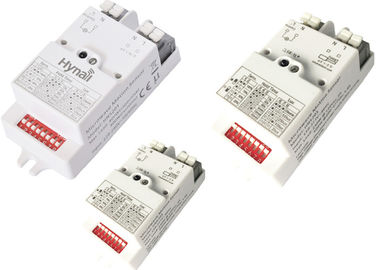

5.8GHz C Band Microwave Motion Sensor Module 12m Detection With On / Off Function

Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS, ETL
Model Number HNS201(EU&US)
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Input Voltage 220-240V AC, 50Hz;120~277V AC 60Hz Rated Load 200W@120V AC(capacitive);400W@200-277V AC(capacitive)
Size 80*36*25.5mm Function Lux-off;On / Off Control
Operation Temperature -20℃ ~ +70℃ Warrenty 5 Years
High Light

microwave motion detector


microwave sensor switch


Lux off Microwave Motion Sensor Module

Leave a Message
Product Description

 Microwave Motion Sensor Switch on/off and lux-off function HNS201


Quick details:


Dual processor technology, real Lux-off function for built-in application

Zero-cross point operation, protect the sensor relay against th in-rush current, serure the max. load and life time of the relay






Stand-by power: <0.5w
Detection range up to 12m in diameter
Mounting height:  3〜6m
Operation temperature:  -20℃ ~ +70℃
IP rating:  IP20
RoHS compliant





Detection range
Detection range can be reduced by selecting the combination on the DIP switches to fit precisely each application.

100%, 75%,50%,25% for your options




Hold-time means the time period to keep the lamp on 100% after motion detected.

T3s,30s,90s,5min,10min,30min for your options



Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable”: The sensor works always, even during daylight.

"50lux, 25lux": The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.




Wiring diagram--


5.8GHz C Band Microwave Motion Sensor Module 12m Detection With On / Off Function 0



Detection pattern--


5.8GHz C Band Microwave Motion Sensor Module 12m Detection With On / Off Function 1



Lux-Off function--


Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).


This is the REAL& INTELLIGENT lux-off sensor for built-in installation.


Note: Lux-Off sampling time--30s
