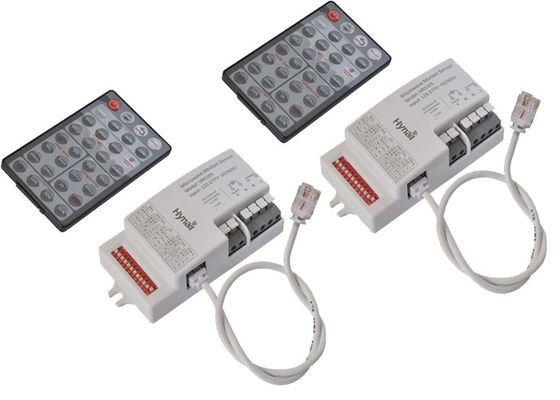

Microwave motion sensor switch trailing Edge Dimmable Motion Sensor with Push-Dim Function
Quick details:
5.8GHz C-band trailing edge microwave motion sensor , tri-level dimming control
Particularly designed for retrofit purpose on trailing edge tchnology based fixtures, AC LED lamps, AC halogen lamps, etc. Convert / upgrade easily fixtures into intelligent motion sensor control without extra change, at the same time, Push-Dim function acquired.
Dual-processor technology, real daylight monitoring function for built-in application.
Size: 102*45*26.5mm
Detached sensor antennas: ANT01 (suggested size for hole cutting: 21x17mm) ; ANT02(suggested size for hole cutting : 25mm in diameter
Features:
| Input voltage: | 220〜240V AC, 50/60Hz |
| Rated load: |
200W (resistive) 150W (capacitive load, for example trailing edge dimmable driver or AC LED) |
| Stand-by power: | <1w |
| Over-heat protection: | Automatically output reduction against over-heat, 80%-50%-10%-OFF |
| Over-load protection: | Automatically shut off when load ≥300w |
| Setting: | DIP switch + IR Remote control 2 channels setting. Automatically override each other upon the latest operation. |
| Detection range | up to 12m in diameter |
| Mounting height: | 3~6m |
| Operation temperature: | -20℃~ + 70℃ |
| IP rating: | IP20 |
Push-Dim function
This sensor supports Push-Dim function for end-users to switch on / off, or adjust the target lux level by ordinary push switch. In this way make the product more user-friendly and flexible.
Settings(by DIP switch)--
Detection range
Detection range can be reduced by selecting the combination on the DIP switches to fit precisely each application.
100%,75%,50%,sensor off for your options
Hold-time
Hold-time means the time period to keep the lamp on 100% after motion detected.
T3s, 30s,90s,5min,10min,30min for your options
Daylight sensor
Daylight sensor means the daylight threshold to enable or disable the sensor function.
"Disable": The sensor works always, even during daylight.
"50lux": The sensor works only in twilight.
"10lux, 2lux": The sensor works only in the dark.
Stand-by period
This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.
“+∞”: means bi-level dimming control, the fixture never switch off.
10s,5min,10min,30min,1H, +∞ for your options
Stand-by dimming level
This is the dimmed low light level you would like to have after the hold-time in the absence of people.
0%, 10%, 30%, 50% for your options
Settings(by remote control IR12)--
Permanent ON/OFF function
Press the button, fixture goes to permanent on or permanent off mode, sensor is disabled.
Dim +/-
Press the button to automatically dim up or down the light brightness during hold-time from 10% to 100%.
Another press to lock it down when desired brightness is achieved.
Sensor mode
Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
Reset function
Press”Reset” button, all settings go back to factory default settings.
Ambient learn
Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.
Test mode
"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.
Wiring diagram--
Detection pattern--
|
|
