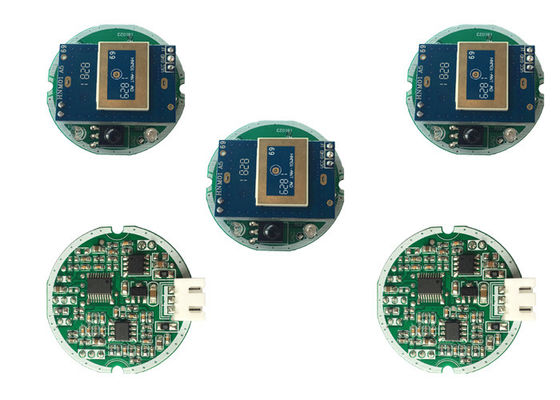

High Bay motion sensor Dimming Occupancy Sensor , Motion Sensor Dimming round green small module IP20 5 years warranty

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS106HB
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: DC 12V (customized 5V,24V On Request) Input Current: ≥25mA
Fucntion: Tri-level Dimming Detection Range: Up To18m In Diameter
Mounting Height: 10~12m Warranty: 5-year
High Light:

high bay occupancy sensor


dual motion sensor

Product Description

      High Bay Motion Sensor DC microwave motion sensor dimming occupancy sensor , Remote Controllable


Specially designed for highbay fapplications (shoebox / gas station lamp / warehouse lamp / canopy /stadium lamp, etc), totally integrated onto the board, 100% built-in.



5.8GHz C-band radar

Small size, easily built into all kinds of UFO fixtures.

Dual-processor technology.

IR remote commissioning.

Detection range: max.18m in diameter.

Mounting height: up to 10~12m.

Operation temperature: -20℃ ~ +70 ℃

RoHS compliant.

Input voltage 12V DC for standard.
Input current: ≧25mA.
Output signal: 0~10V dimming signal for standard,5V DC high-low voltage & PWM available on request



Settings(by remote control IR12)--


Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.


Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.


Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.


Reset function

PressReset button, all settings go back to factory default settings.


Ambient learn


Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.





Detection pattern--


High Bay motion sensor Dimming Occupancy Sensor , Motion Sensor Dimming round green small module IP20 5 years warranty 0
