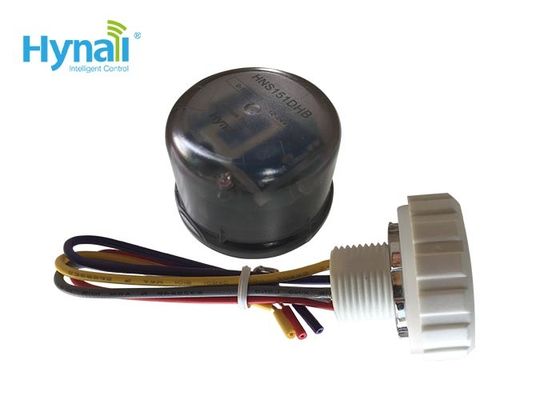

Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control

Basic Information
Place of Origin: China
Brand Name: hyanll
Certification: CE RED FCC
Model Number: HNS151DHB
Minimum Order Quantity: 50
Packaging Details: 45*30*23cm
Delivery Time: 3~4 weeks
Payment Terms: T/T
Supply Ability: 20000 per month
Detail Information
Usage: Lighting And Lighting System IP Rating: IP65
Name: Motion Sensor Module Output: 0~10V
Size: Small 50mm In Diameter
High Light:

Daylight Harvest Motion Sensor Module

,

12m Mounting Motion Sensor Module

,

Zhaga Book 18 Remote Control


Product Description

Model name: HNS151DHB      Zhaga book 18 daylight harvest max. 12m  HNS151DHB



This model is a motion sensor with daylight harvest and 0-10v dimming by remote control setting.



Advantage:

1.  IP65, available for wallpacks, shoeboxes and UFO highbay fixtures etc.

2.  Easy and small enough to be used built-in, 50mm in diameter only. Easily changed motion sensor head

     and daylight head, and remove the sensor head and put the cover cap on.

3. Daylight harvest and microwave motion sensor 2 in 1

4. Max. 12m high bay mounting height

5. Customized service: Yes



Product information:



5.8GHz C-band microwave

Input voltage: 12-24V DC

Input current: ≥30mA.

0~10V / PWM output signal.

Max. 18m in diameter for detection range

mounting height: max.12m

If the lighting fixture manufacturers / contactors do not want
the sensor function, they just need to easily remove the
sensor head and put the cover cap on, the fixture becomes
standard non-sensor control fixture.



Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 0

Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 1

Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 2

Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 3



Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 4

“Test mode” is for testing purpose only, for users to check the functionality and choose the desired detection range.
The sensor goes to test mode automatically after pressing
this button.



In this mode, when used f or on/off control, after motion
detected, sensor enters into a cycle of 3s on and 2s off.
In this mode, when used f or tri-level dimming control,
after motion detected, sensor enters into a cycle of 3s on
and 2s off (0.5s soft off + 1.5s off ).

Users can quit this mode by pressing“ ON/OFF”,“ Reset”,or any button of“ Hold time”. The sensor settings are changed accordingly.





Test mode defaulted settings--
Daylight sensor=disable
Hold time=3s
Twilight time=N/A
Twilight level=N/A

Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 5

Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 6Daylight Harvest Motion Sensor Module 12m Mounting HNS151DHB Remote Control 7
