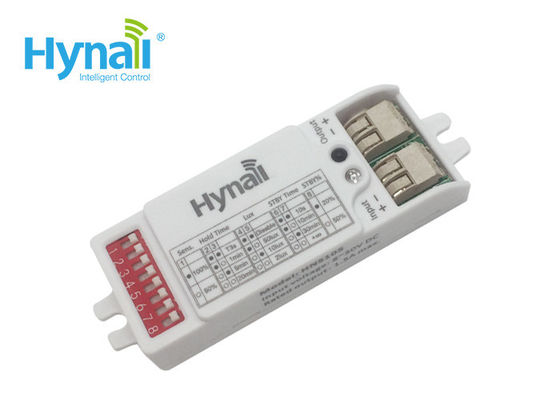

IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor

  • IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor
  • IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor
  • IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor
  • IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor
Place of Origin Shenzhen, China
Brand Name Hynall
Certification RED, FCC, RoHS
Model Number HNS105
Minimum Order Quantity 300pcs
Price To be negotiated
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 3~4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Installation Built-in Operation Temperature -20℃ ~ +70℃
Rated Load Max.36w@24v；18w@12v Current Max. 1.5A
Name Microwave Motion Sensor Switch Warranty 5 Years
High Light

1.5A Dimmable Microwave Motion Sensor

,

36w Dimmable Microwave Motion Sensor

,

30VDC Microwave Sensor Switch
Leave a Message
Product Description

microwave motion sensor switch , 8~30V DC input special design for solar system, it is a low voltage sensor thacan directly connect the fixture



This microwave motion sensor switch is specially designed for:



1. solar system
2. low voltage halogen lamp fixture
3. can connect non-dimmable constant voltage driver to dim the fixture





Microwave motion sensor switch features:

1. Max.Current 1.5A
2.  Rated output: 18w@12v; max.36w@24v
3. Detection range: Up to 12m in diameter for ceiling mounting
4. Mounting height: about 6m
5. IP rating IP20





IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor 0IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor 1IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor 2IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor 3IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor 4IP20 8~30VDC 1.5A 36w Dimmable Microwave Motion Sensor 5

What makes us stand out from others?

Unlike many sensor manufacturers who also get themself involved in driver business or others, we focus only on our
expertise--microwave products / solutions, we only do what we are really good at. Every product out of Hynall is
microwave related, we seek for product diversity inside microwave industry only!
