HNM01 Microwave Motion Sensor Module Pure Antenna 2 dBi Antenna Gain
  • name
  • name

HNM01 Microwave Motion Sensor Module Pure Antenna 2 dBi Antenna Gain

MOQ: 1,000pcs
Price: To be negotiated
Standard Packaging: Blister packaging
Delivery Period: 3~4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 30,000pcs / month
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNM01
Antenna Gain:
2 DBi
Beam Aperture:
30°
Receiver Bandwidth:
1Hz~2KHz
Input Voltage:
5 ± 0.25V DC
Average Current:
1.5mA Typ.
Duty Cycle:
10% DC
Highlight:

microwave movement sensor

,

microwave sensor switch

Product Description

Key Component To Develop Your Own Sensor , Microwave Motion Sensor Module , Pure Antenna



In some cases, customers don't want to use the standard / finished sensor product, they prefer to design and produce their own sensor controls to fit better for their demands and bring more added values to their fixtures, at the same time save cost deeply. This antenna module is just for you to do that as the crucial component. For customers who have enough R&D competence to integrate such antenna module, this is definitely the most cost efficient and flexible solution to develop their own sensor product ranges.

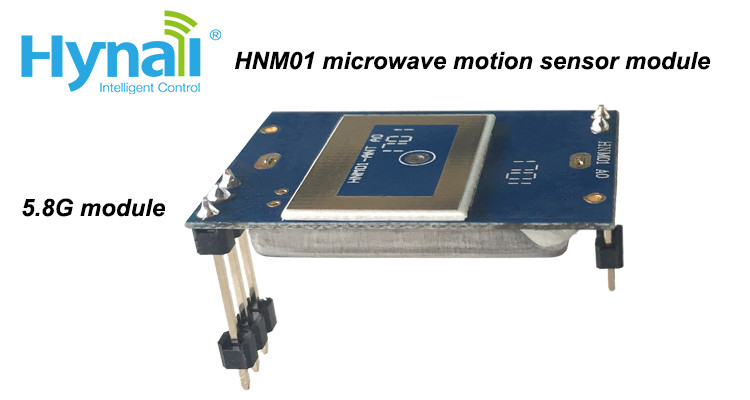

HNM01 Microwave Motion Sensor Module Pure Antenna 2 dBi Antenna Gain 0



Features--

Low cost.

5.8GHz C-band miniature transceiver.

Patch antenna, antenna gain: 2 dBi.

Beam aperture: 30°.

2 balanced mixer.

5dBm EIRP output power.

Receiver bandwidth: 1Hz ~ 2KHz.

Operating current(CW mode): 13.5mA@5V.

Low power consumption(Pulse mode):

Average current: 1.5mA typ.

Pulse width(min.):10~50µ s(10kHz~2kHz)

Duty cycle:10% DC
RoHS compliant
Tested to EN300 440



PIN Description--

          HNM01 Microwave Motion Sensor Module Pure Antenna 2 dBi Antenna Gain 1



Coverage Pattern--



HNM01 Microwave Motion Sensor Module Pure Antenna 2 dBi Antenna Gain 2



Tags:

microwave sensor switch,

microwave movement sensor,

microwave motion detector
