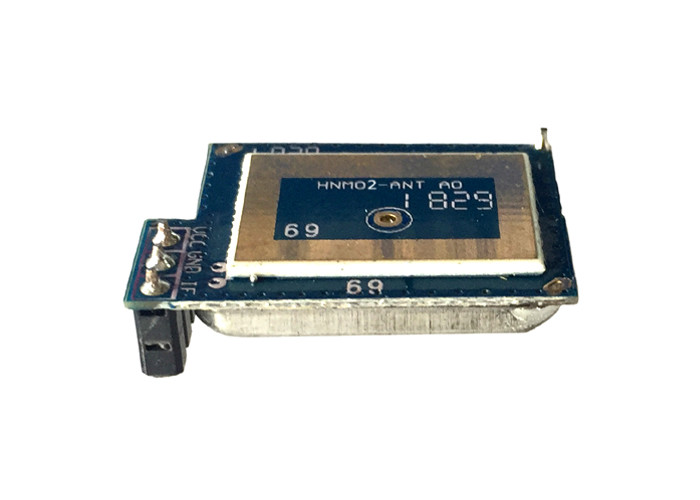

3dBi Microwave Sensor Module Key Component Green Small HNM02
  • name

3dBi Microwave Sensor Module Key Component Green Small HNM02

MOQ: 1,000pcs
Price: To be negotiated
Standard Packaging: Blister packaging
Delivery Period: 3~4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 30,000pcs / month
Detail Information
Product Description
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNM02
Antenna Gain:
3dBi
Beam Aperture:
30°
Receiver Bandwidth:
1Hz~2KHz
Input Voltage:
5 ± 0.25V DC
Average Current:
1.2mA Typ.
Duty Cycle:
10% DC
Highlight:

HNM02 Microwave Motion Detector

,

1.2mA Microwave Sensor Module

,

3dBi Microwave Sensor Module

Product Description

Key Component To Develop Your Own Sensor , Microwave Motion Sensor Module , Pure Antenna



In some cases, customers don't want to use the standard / finished sensor product, they prefer to design and produce their own sensor controls to fit better for their demands and bring more added values to their fixtures, at the same time save cost deeply. This antenna module is just for you to do that as the crucial component. For customers who have enough R&D competence to integrate such antenna module, this is definitely the most cost efficient and flexible solution to develop their own sensor product ranges.



3dBi Microwave Sensor Module Key Component Green Small HNM02 0Features--



Super compact size.

5.8GHz C-band miniature transceiver.

Patch antenna, antenna gain: 3 dBi.

Beam aperture: 30°.

2 balanced mixer.

6dBm EIRP output power.

Receiver bandwidth: 1Hz ~ 2KHz.

Operating current(CW mode): 12mA@5V.

Low power consumption(Pulse mode):

Average current: 1.2mA typ.

Pulse width(min.):10~50µ s(10kHz~2kHz)

Duty cycle:10% DC

RoHS compliant

Tested to EN300 440



PIN Description--

3dBi Microwave Sensor Module Key Component Green Small HNM02 1



Coverage Pattern--

3dBi Microwave Sensor Module Key Component Green Small HNM02 2





Tags:

microwave sensor switch,

microwave movement sensor,

microwave motion detector
