IF Signal Microwave Motion Sensor Light Switch Compect Size 2 Balanced Mixer

MOQ:	1,000pcs
Price:	To be negotiated
Standard Packaging:	Blister packaging
Delivery Period:	3~4 weeks for bulk orders
Payment Method:	T/T
Supply Capacity:	30,000pcs / month

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen, China

Brand Name

Hynall

Certification

RED, FCC, RoHS

Model Number

HNM02

Model Name:

HNM02

Type:

Microwave Motion Sensor Module

Input Voltage:

5V DC

Output:

IF Signal

Average Current:

1.2mA Typ.

Duty Cycle:

10% DC

Highlight:

IF Signal Microwave Motion Sensor Light Switch

Hynall Microwave Motion Sensor Light Switch

Compect Size Microwave Sensor Light Switch

Product Description

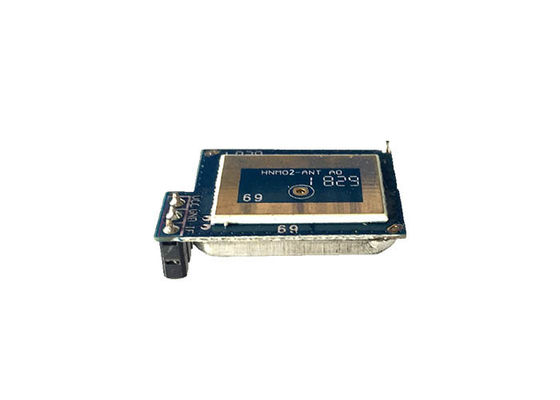

Model name: HNM02 Microwave Motion Sensor Module

This model is a small microwave motion sensor module, and in some cases, some customers don't want to use the standard / finished sensor product, and prefer to design and produce their own sensor controls to fit better for their demands and bring more added values to their fixtures, at the same time save cost deeply. This antenna module is just for you to do that as the crucial component.

Advantage:

1. Warranty: 5 years

2. Super compect size

3. Customzied service: YES

Product information:

5.8GHz C-band miniature transceiver.

Operating current(CW mode): 12mA@5V.

Beam aperture: 30°.

6dBm EIRP output power.

Patch antenna, antenna gain: 3 dBi.

Duty cycle:10% DC

2 balanced mixer.

Receiver bandwidth: 1Hz ~ 2KHz.

Low power consumption(Pulse mode):

Average current: 1.2mA typ.

Pulse width(min.):10~50µ s(10kHz~2kHz)

IF Signal Microwave Motion Sensor Light Switch Compect Size 2 Balanced Mixer 0

Application:

IF Signal Microwave Motion Sensor Light Switch Compect Size 2 Balanced Mixer 4

Company:

IF Signal Microwave Motion Sensor Light Switch Compect Size 2 Balanced Mixer 5
