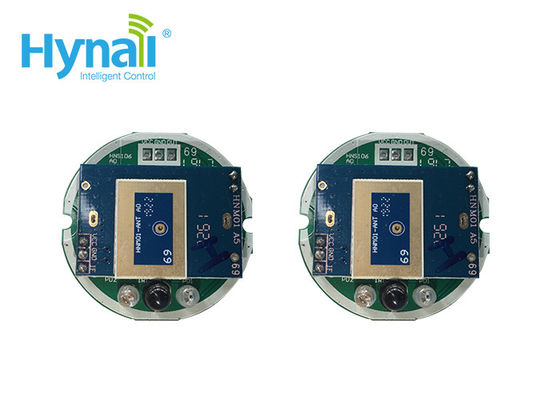

25mA Highbay Microwave Motion Sensor Module HNS106HB For Lighting Control

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Hynall
Certification: RED, FCC, RoHS
Model Number: HNS106HB
Minimum Order Quantity: 300pcs
Price: To be negotiated
Packaging Details: Bubble bag + carton. (color box or blister package also available on request)
Delivery Time: 3~4 weeks for bulk orders
Payment Terms: T/T
Supply Ability: 30,000pcs / month
Detail Information
Input Voltage: 12V-24V DC Input Current: ≥25mA
Control Type: PWM / 0-10v / 5v High Low Voltage Detection Range: 16~18m In Diameter
Setting: IR Operation Temperature: -20℃ ~ +70℃
High Light:

Highbay Microwave Motion Sensor Module

,

Microwave Motion Sensor Module HNS106HB

,

25mA Lighting Control Switch Module


Product Description

Microwave motion sensor module HNS106HB max. 12m highbay mounting height



40mm in diameter,  available for warehouse lamp / canopy / shoebox etc

Available for UFO, highbay lights





Features--

IR remote control setting, easy setting and user friendly.

Detection range: max.18m in diameter.

Mounting height: max. 10~12m.

Source current/ Sink current: Max. 20mA; 0-10V leads can not be short-circuit.

DC motion sensor with 0~10V DC output.



Module: 5.8GHz
Model name: HNS106HB
Inpput voltage: 12V-24V DC
Customized service: Available
Application: warehouse etc.
Setting: Infraded remote control and DIP switch two options
Size: 40mm in diameter
IP rating: IP20
Warranty: 5 years

25mA Highbay Microwave Motion Sensor Module HNS106HB For Lighting Control 025mA Highbay Microwave Motion Sensor Module HNS106HB For Lighting Control 1

25mA Highbay Microwave Motion Sensor Module HNS106HB For Lighting Control 225mA Highbay Microwave Motion Sensor Module HNS106HB For Lighting Control 3
