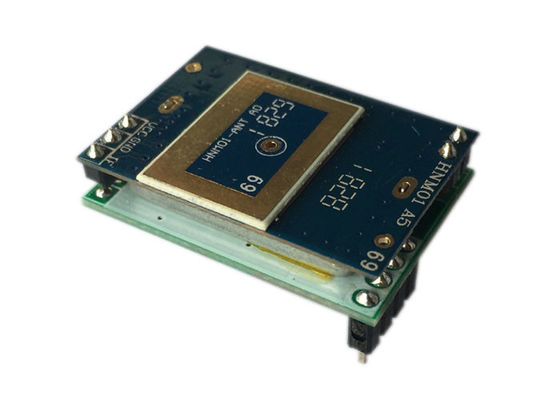

Microwave motion sensor switch 5v small motion sensor module

Microwave motion sensor switch 5v small motion sensor module

MOQ: 300pcs
Price: To be negotiated
Standard Packaging: Blister packaging
Delivery Period: 3~4 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 30,000pcs / month
Detail Information
Place of Origin
Shenzhen, China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
ANT03
Operation Voltage:
5V DC
Operation Current:
15mA
Warming-up Time:
20s
Operation Temperature:
-20℃ ~ +75℃
Digital Output:
5V DC High / Low Voltage
Sensitivity Adjustment:
By V-Tune, 25%-50%-75%-100%
Highlight:

microwave sensor switch

,

microwave movement sensor

Product Description

 For Lighting , Security , Automation , etc . Microwave Motion Sensor Switch , Digital Microwave Head



Same as the digital PIR sensor head, this is our unique digital microwave antenna head, which gives a 5v high / low voltage signal for your products / systems to adopt, DSP output makes it easy and simple to integrate with all terminal devices. This sensor head could be used as a component for not only lighting, but also security, or automation. etc.

Microwave motion sensor switch 5v small motion sensor module 0

Features--



Operation voltage: 5V DC
Operation current: 15mA
Operation temperature: -20℃ ~ + 75℃
Warming-up time: 20s
Digital output: 5v high / low voltage
V-Tune
Description V-Tune PIN Voltage Sensitivity level
Low sensitivity 0.00v-1.249v 25%
Medium sensitivity 1.25v-2.49v 50%
High sensitivity 2.50v-3.74v 75%
Test sensitivity 3.75v-5.00v 100%





PIN description--



PIN Name Description
1 +5V DC Input DC power +5V DC
2 GND GND
3 Output Output 5V high / low voltage
4 V-Tune Sensitivity
5 NC Fix PIN
6 NC Fix PIN



Microwave motion sensor switch 5v small motion sensor module 1





Timing chart--



Microwave motion sensor switch 5v small motion sensor module 2





Peripheral port extension--



Microwave motion sensor switch 5v small motion sensor module 3





Detection pattern--



Microwave motion sensor switch 5v small motion sensor module 4
