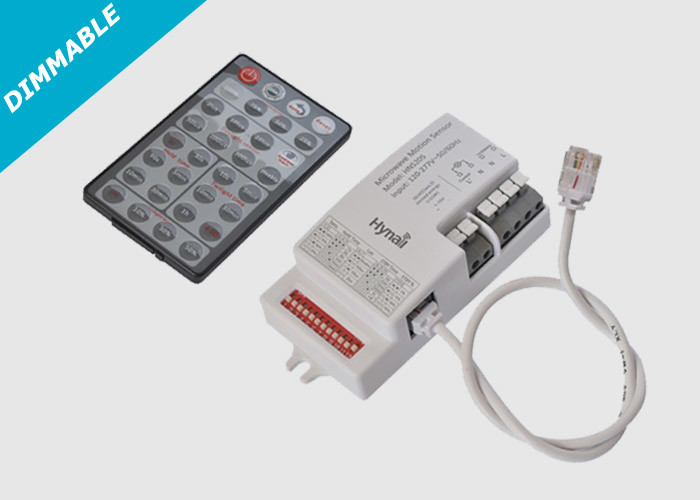

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC

Place of Origin Shenzhen
Brand Name Hynall
Certification CE, RED, FCC, RoHS
Model Number HNT205
Minimum Order Quantity 400pcs
Price Negotiable
Packaging Details Bubble bag + carton. (color box or blister package also available on request)
Delivery Time 4 weeks for bulk orders
Payment Terms T/T
Supply Ability 30,000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220~240V AC Rated Load 200W(resistive), 150W(capacitive)
HF Frequency 5.8GHz Protections Over-heat & Over Load Protection
Detection Range Max. 12m In Diameter Mounting Height 3~6m
Product Guarantee 5 Years Dual Daylight Sensor Yes
High Light

motion dimmer switch

,

dimmer sensor switch

,

Push Dim Dimmable Motion Sensor

Leave a Message
Product Description

                         Push - Dim Function , Dimmable Motion Sensor , Trailing Edge Dimmable , Input 220 ~ 240V AC





Particularly designed for retrofit purpose on trailing edge technology based fixtures, AC LED lamps, AC halogen lamps, etc. Convert / upgrade easily existing fixtures into intelligent motion sensor control without extra change, at the same time, Push-Dim function acquired.





Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 0

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 1





Features--


5.8GHz C-band trailing edge microwave motion sensor, tri-level dimming control.

Input voltage: 220〜240V AC, 50/60Hz.

Rated load:     200W  (resistive)

  150W (capacitive load, for example trailing edge dimmable driver or AC LED)

Stand-by power: <1w.

Over-heat protection: Automatically output reduction against over-heat, 80%-50%-10%-OFF.

Over-load protection: Automatically shut off when load ≥300w.

Dual-processor technology, real Daylight monitoring function for built-in application.

DIP switch + IR Remote control 2 channels setting. Automatically override each other upon the latest operation.

Detection range up to 12m in diameter.

Mounting height: 3~6m.

Operation temperature: -20℃~ + 70℃

IP rating: IP20.





Push-Dim function--



This sensor supports Push-Dim function for end-users to switch on / off, or adjust the target lux level by ordinary push switch. In this way make the product more user-friendly and flexible.



Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 2





Settings(by DIP switch)--



Detection range

Detection range can be reduced by selecting the combination

on the DIP switches to fit precisely each application.

*when detection range set as "sensor off", this sensor becomes then a pure trailing edge  dimmer with push-dim function, no matter with or without the detached antenna head ANT01 / ANT02.

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 3



Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 4



Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable": The sensor works always, even during daylight.

"50lux": The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 5



Stand-by period

This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.

“+∞”: means bi-level dimming control, the fixture never switch off.

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 6



Stand-by dimming level

This is the dimmed low light level you would like to have after the hold-time in the absence of people.

*0% means on/off control.

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 7





Settings(by remote control IR12)--



Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.



Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.

*after desired brightness is locked down, if user wants to dim again reversely, just press the Dim button again and then lock down the new brightness again.



Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.



Reset function

PressReset button, all settings go back to factory default settings.



*Factory default settings--

Sensitivity=100%

Daylight sensor=disable

Hold time=90s

Twilight time=5min

Twilight level=10%



Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.



Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.



Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.



*Test mode defaulted settings—

Daylight sensor=disable

Hold time=3s

Twilight time=N/A

Twilight level=N/A



In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).

Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 8





Wiring diagram--



Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 9





Detection pattern--



Push - Dim Dimmable Motion Sensor Trailing Edge Dimmable Input 220 ~ 240V AC 10
