| MOQ: | 300pcs |
| Price: | Negotiable |
| Standard Packaging: | Bubble bag + carton. (color box or blister package also available on request) |
| Delivery Period: | 4 weeks for bulk orders |
| Payment Method: | T/T |
| Supply Capacity: | 30,000pcs / month |
12V DC Input , Dimmable Motion Sensor , Enhance Dection Range For High Bay Use , Remote Controllable

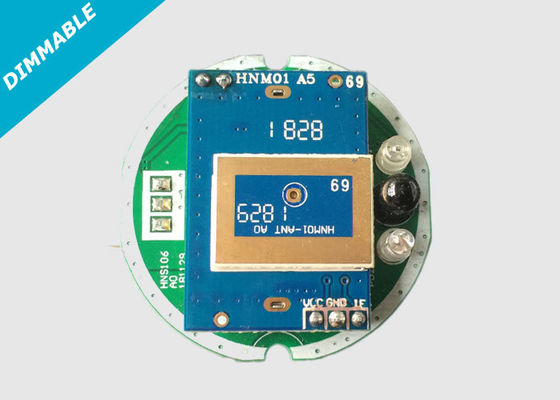

Round shape, naked board, specially designed for highbay fixtures(warehouse lamp / canopy / shoebox / gas station lamp / stadium lamp, etc), totally integrated onto the board, 100% built-in. Reinforced detection range up to 12~15m high, using infrared remote control to change all the settings. No need to use a BIG & HEAVY & EXPENSIVE stand alone IP65 sensor any more!!! Perfect substitution help you to save utmostly!
Features--
Input voltage 12V DC (5V / 24V DC version available on request).
Input current:≧25mA.
0~10V dimming signal. (5V DC high-low voltage & PWM output version available on request)
Super compact(∅40mm only), easily built into all kinds of highbay fixtures.
Dual-processor technology, real Lux -Off & Daylight monitoring function for built-in application.
IR remote commissioning, easy setting and user friendly.
Detection range up to max.18m in diameter.
Mounting height: max. 10~12m.
Settings(by remote control IR12)--
Permanent ON/OFF function
Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.
Dim +/-
Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.
*after desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lock down the new brightness again.
Sensor mode
Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
Reset function
Press”Reset” button, all settings go back to factory default settings.
Ambient learn
Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.
Test mode
"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.
Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.
In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).
Detection pattern--
Daylight monitoring function--
Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required (ambient light is bright enough).
Note: Lux-Off sampling time—30s; Lux-On sampling time—10s.
Lux-On function takes effect only when standby dimming period set at +∞.
Video
Video
|
|
