ON / OFF Control Dimming Control Microwave Doppler Sensor VR Adjustable Naked Board

ON / OFF Control Dimming Control Microwave Doppler Sensor VR Adjustable Naked Board

MOQ: 400pcs
Price: To be discussed
Standard Packaging: Blister packaging
Delivery Period: 3 weeks for bulk orders
Payment Method: T/T
Supply Capacity: 30,000pcs / month
Detail Information
Place of Origin
China
Brand Name
Hynall
Certification
RED, FCC, RoHS
Model Number
HNS103 / HNS103D
Input Voltage:
5V DC(12V / 24V DC Version Available On Request)
Input Current:
≥20mA
Control Type:
On/off Control(HNS103), Dimming Control(HNS103D)
Detection Range:
Max. 12m In Diameter
Mounting Height:
3~6m
Product Type:
Naked Board
Antenna Type:
Patch Antenna
HF Frequency:
5.8GHz
Product Guarantee:
5 Years
Settings:
By VR
Highlight:

doppler motion sensor

,

microwave doppler module

Product Description

                         ON / OFF Control & Dimming Control , Presence Motion Detector , VR Adjustable , Naked Board



This is only a naked board sensor, with built-in MCU and VR setting adjustable, no mote extra software development needed, easy & fast for customers to integrate into their own PCB / system.

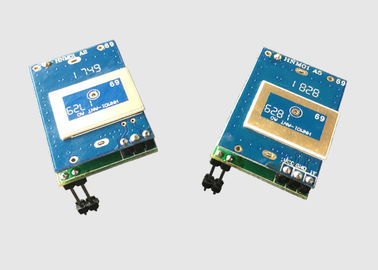

ON / OFF Control Dimming Control Microwave Doppler Sensor VR Adjustable Naked Board 0

Features--



5.8GHz C-band microwave.

With built-in MCU, no more extra software development needed, easy & fast productization.

Input voltage 5V DC (12V / 24V DC version available on request).

Input current:≥20mA.

Output 5V DC high-low voltage & PWM signal.

Super compact, flexible to be integrated into any suitable fixtures.

Setting done by 3pcs individual VR, clockwise to 5V(max.), counter clock-wise to 0V(min.).

PIN connection, easy assembly.

Detection range up to max.12m in diameter.

Mounting height: 3~6m.
